RX1330 M3 Upgrade and Maintenance Manual 323
Appendix

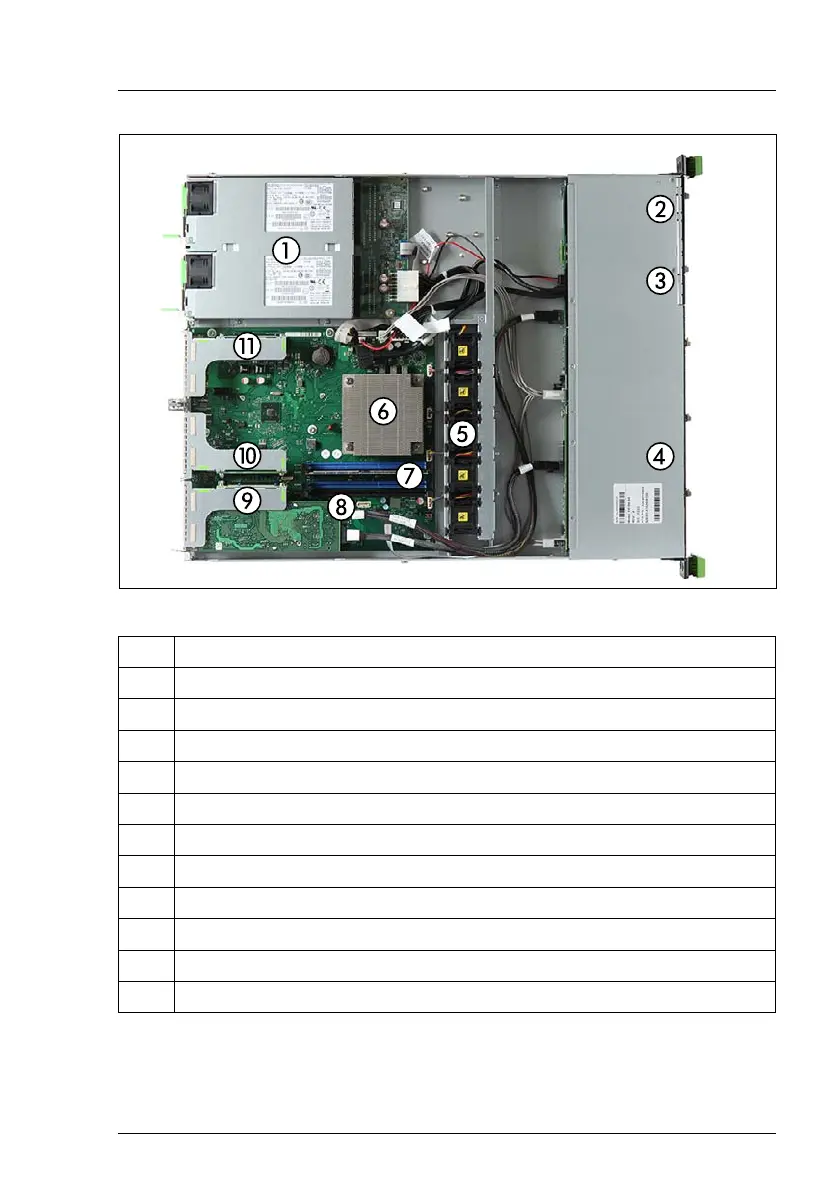

Figure 235: Interior (example: 2.5-inch HDDs and redundant PSU)
Pos. Component
1 Redundant PSU: up to 2 hot-plug PSUs / dummy cover
2 Front panel module / front VGA (option) / dummy cover
3 ODD (option) / dummy cover
4 Up to 8x 2.5-inch HDDs / dummy modules
5 5x fan modules
6CPU
7 Main memory
8 SATA DOM (option)
9 Riser module 1
10 Riser module 2
11 Riser module 3
