188 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.2 Handling slot brackets
9.2.1 Installing a slot bracket
I Use the low profile bracket perforated for relevant controllers.

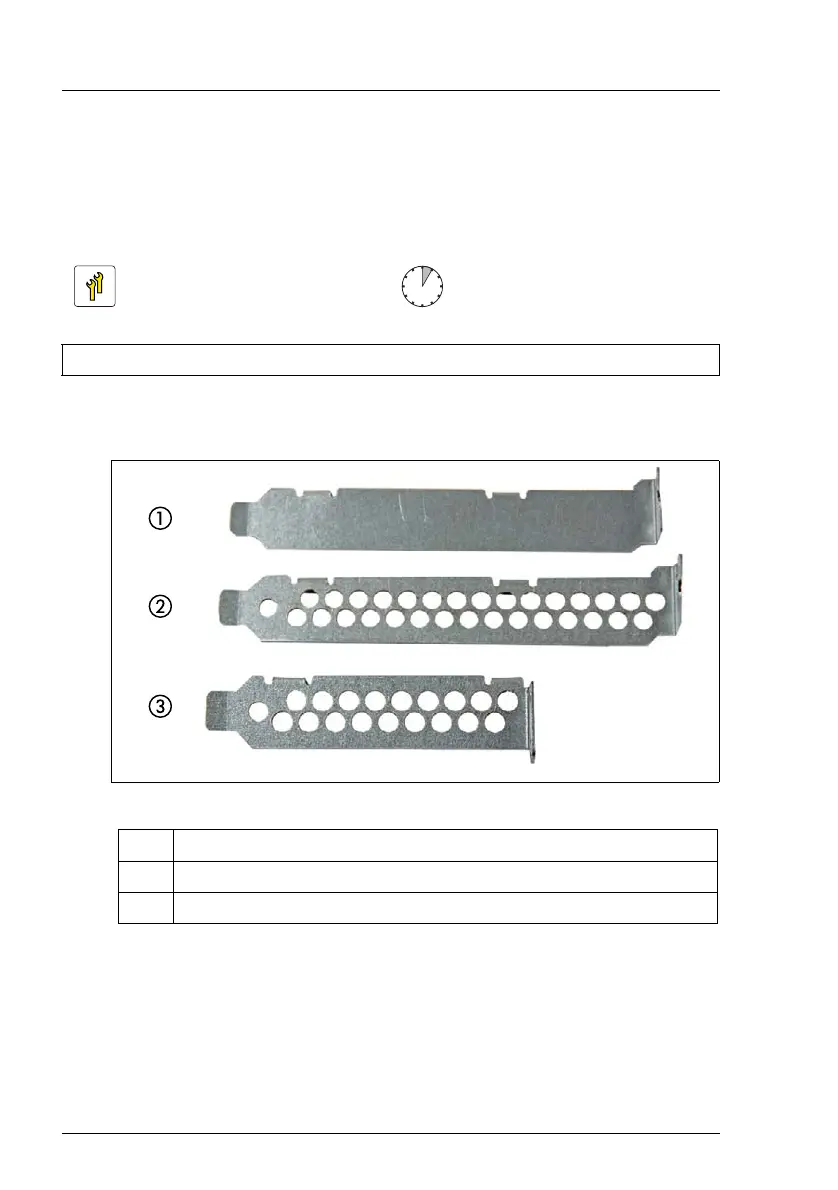

Figure 102: Perforated and non-perforated slot brackets
Installing the slot bracket
Ê Place the controller on the mounting tabs on the slot bracket.
Ê Fasten the slot bracket to the controller with two screws.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
1 Full height bracket non-perforated
2 Full height bracket perforated
3 Low profile bracket perforated
