272 Upgrade and Maintenance Manual RX1330 M3
Ê Thread the front panel cable through the opening (see figure 182).

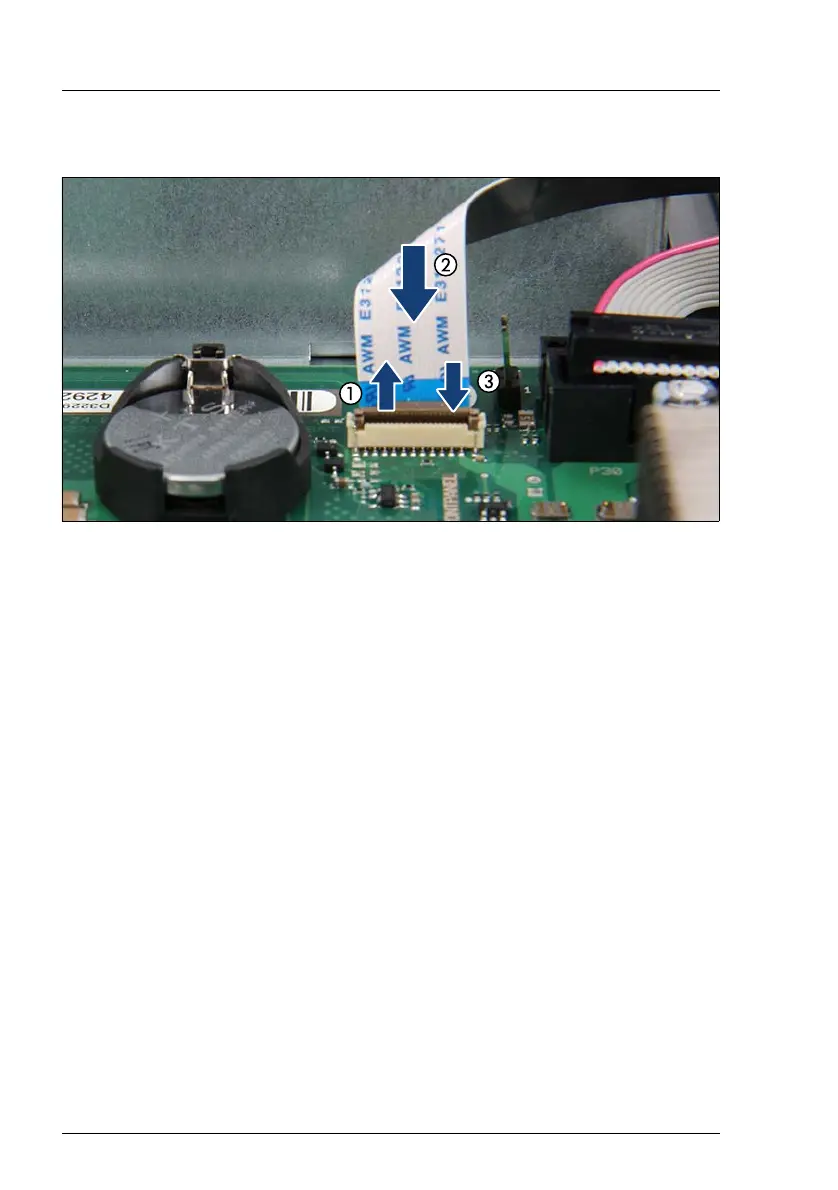

Figure 187: Connecting the front panel cable (B)
Ê Pull up the locking bar (1).
Ê Bend the cable 90 degrees by hand for easier routing.
Ê Insert the front panel cable (2). Please make sure that the front panel cable
is assembled as shown (blue marking).
Ê Press down the locking bar (3).
13.4.1.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Using the Chassis ID Prom Tool" on page 98
Ê "Verifying system information backup / restore" on page 81
Ê "Resuming BitLocker functionality" on page 95
