204 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.4.4 Replacing a riser card
9.4.4.1 Preliminary steps
Ê "Locating the defective server" on page 50
Ê "Shutting down the server" on page 53
Ê "Disconnecting the power cord" on page 54
Ê "Getting access to the component" on page 55
Ê "Locating the defective component" on page 51
Ê Remove the corresponding riser module as described in section "Removing
a riser module" on page 66.
9.4.4.2 Removing the riser card
Ê Remove the expansion card as described in section "Removing the
expansion card" on page 199.

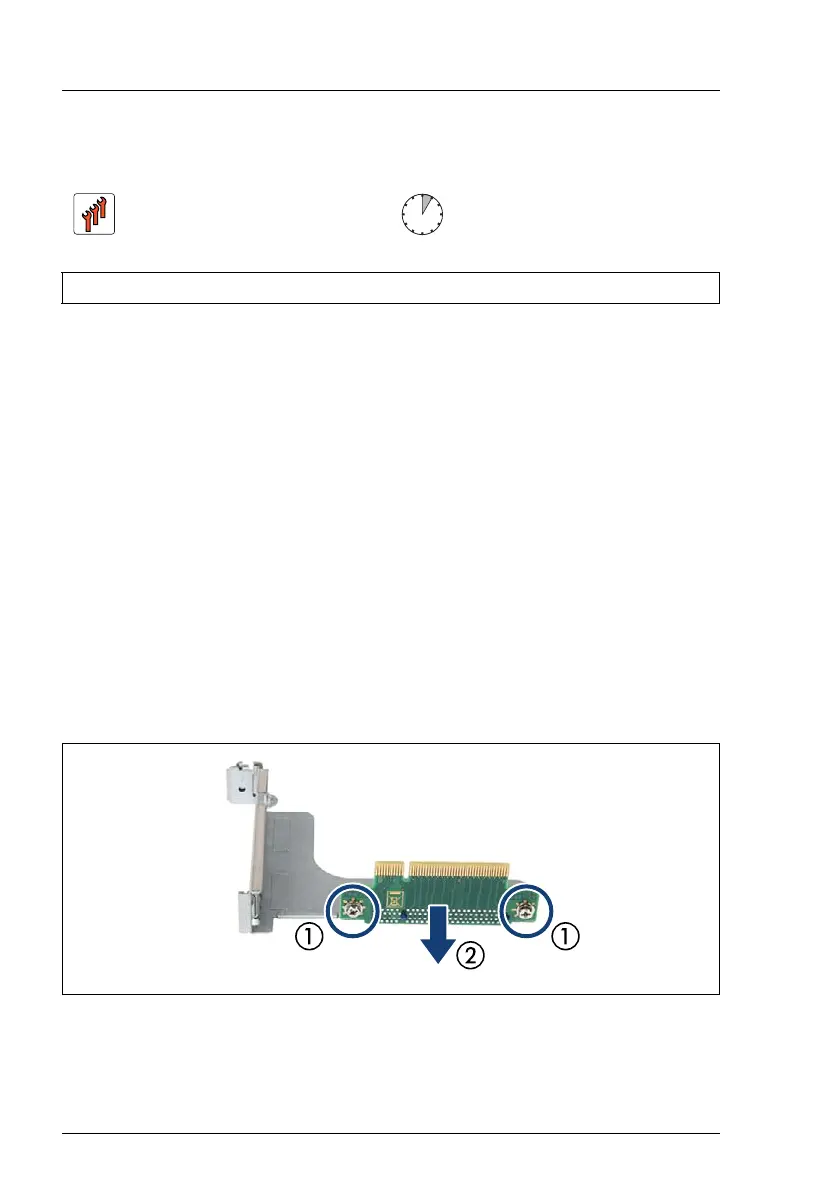

Figure 118: Removing the riser card - example riser module 1
Ê Remove the two screws (1).
Ê Remove the riser card (2).
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
