RX1330 M3 Upgrade and Maintenance Manual 269
13.4.1.2 Removing the front panel on QRL
I The front panel on QRL and the front panel cable are combined in one
spare part.

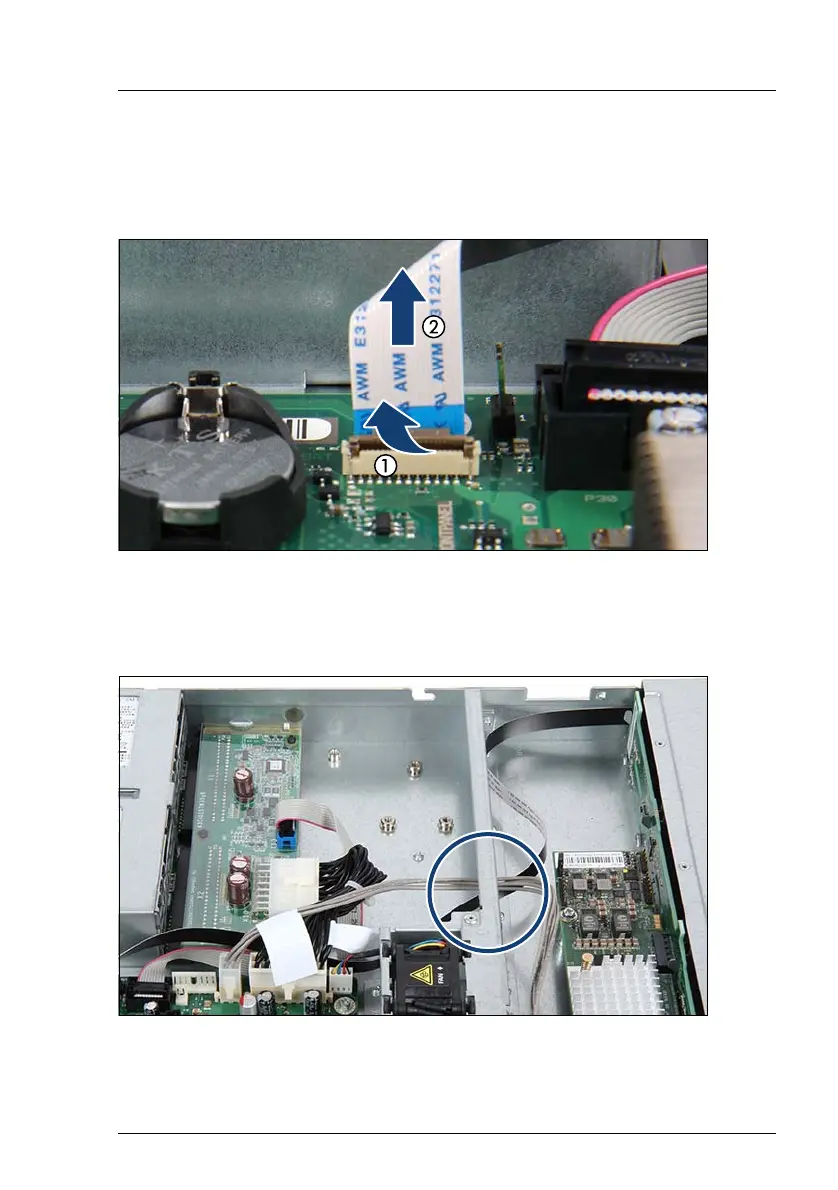

Figure 181: Disconnecting the front panel cable
Ê Pull up the locking bar (1).
Ê Remove the front panel cable (2).
Figure 182: Disconnecting the front panel cable (B)
Ê Thread the front panel cable (flat cable) through the opening (see circle).
