RX1330 M3 Upgrade and Maintenance Manual 209
Expansion cards and backup units

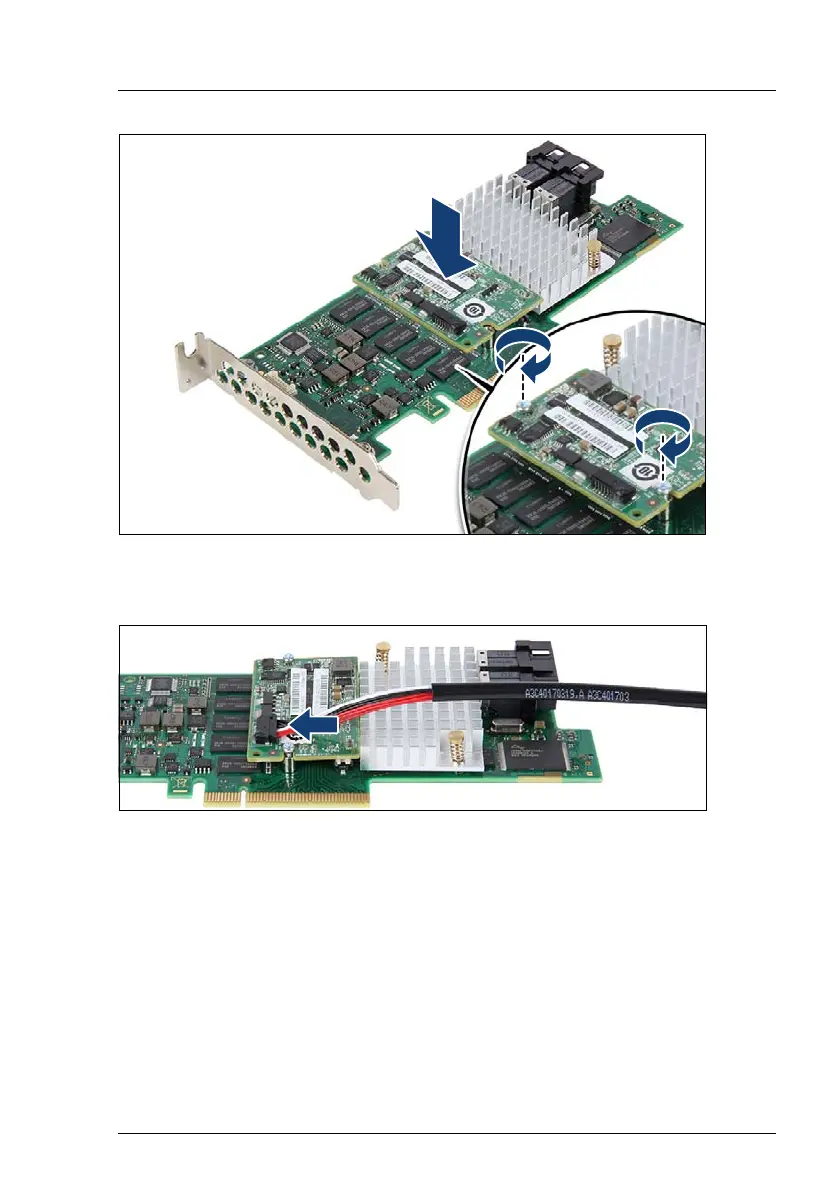

Figure 123: Installing the TFM (B)
Ê Secure the TFM on the RAID controller with the two screws from the TFM kit.
Figure 124: Connecting the FBU adapter cable
Ê Connect the FBU adapter cable to the TFM.
Ê Install the expansion card as described in section "Installing the expansion
card" on page 198.
9.4.5.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
