Fujitsu PRIMERGY RX1330 M3

RX1330 M3 Upgrade and Maintenance Manual 219
Expansion cards and backup units
Ê Lift the holder out of the chassis.
9.5.2.3 Disconnecting the FBU cable from the FBU

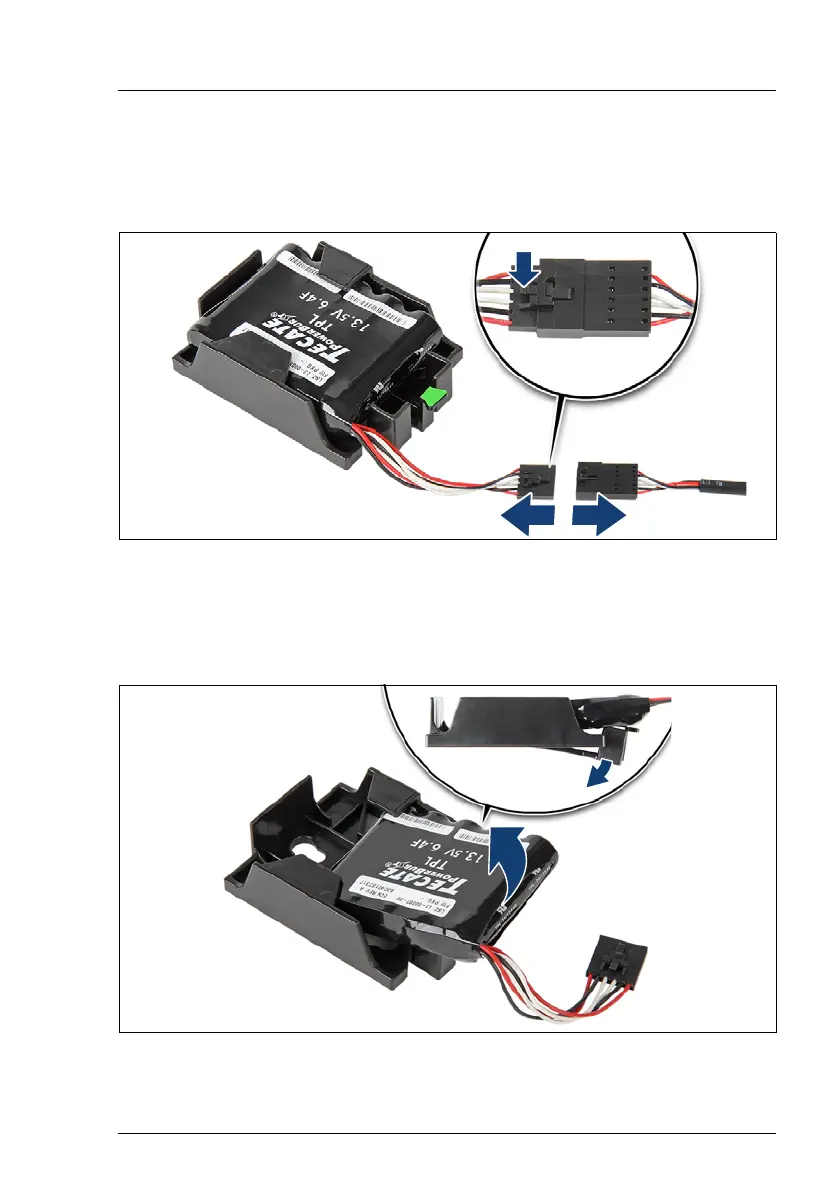

Figure 138: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
9.5.2.4 Removing the FBU from the holder
Figure 139: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
