RX1330 M3 Upgrade and Maintenance Manual 153
Hard disk drive (HDD) / solid state drive (SSD)
Right side 4 x 2.5-inch HDD backplane (A3C40196777)

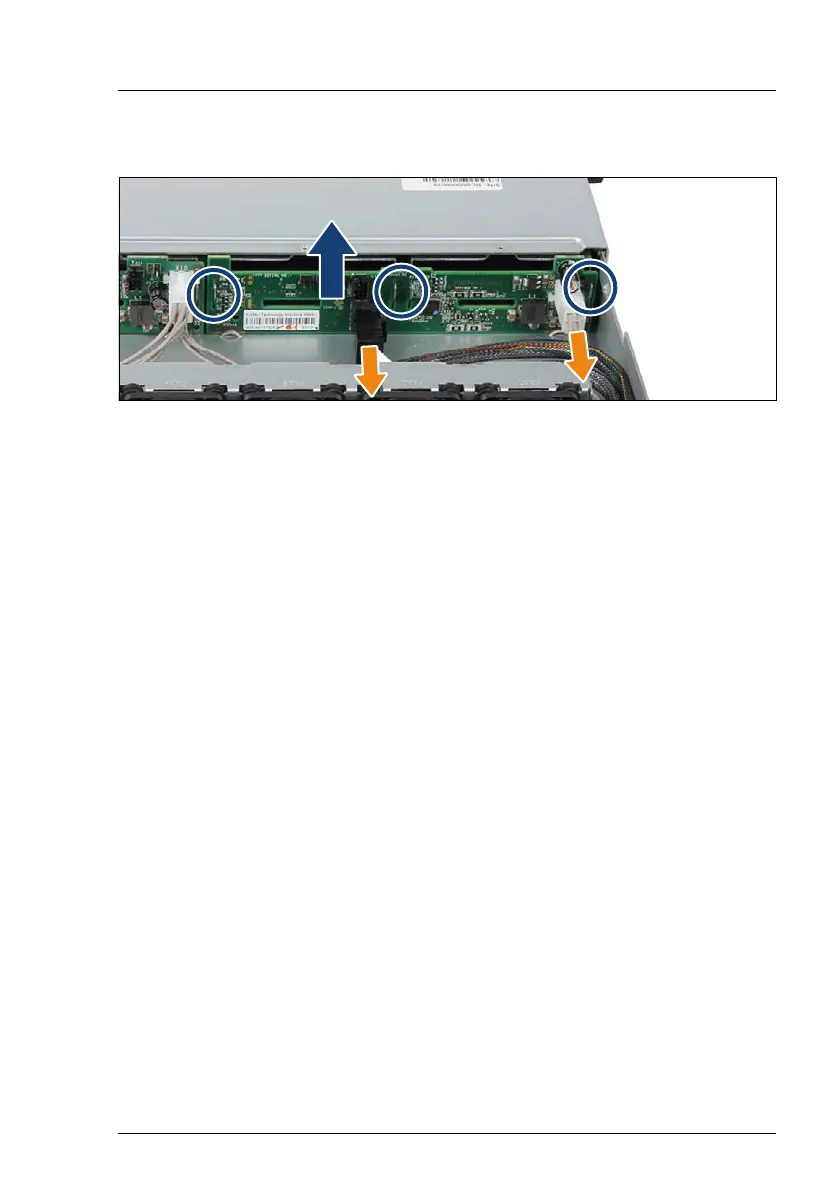

Figure 69: Removing the 4 x 2.5-inch HDD backplane
Ê Disconnect all cables from the HDD backplane (see orange arrows).
I If applicable, remove the OOB cable from the HDD backplane, too.
Ê Pull the HDD backplane upward until the four hooks disengage (see circles).
Ê Take out the HDD backplane.
7.2.8.3 Installing the new 4 x 2.5-inch HDD backplane
I For configurations with up to four 2.5-inch HDDs/SSDs, please refer to:
section "Right side 4 x 2.5-inch HDD backplane (A3C40196777)" on
page 154.
For configurations with up to eight 2.5-inch HDDs/SSDs, please refer to:
section "Right side 4 x 2.5-inch HDD backplane (A3C40196777)" on
page 154 or "Left side 4 x 2.5-inch HDD backplane (A3C40196780)" on
page 155.
