RX1330 M3 Upgrade and Maintenance Manual 251

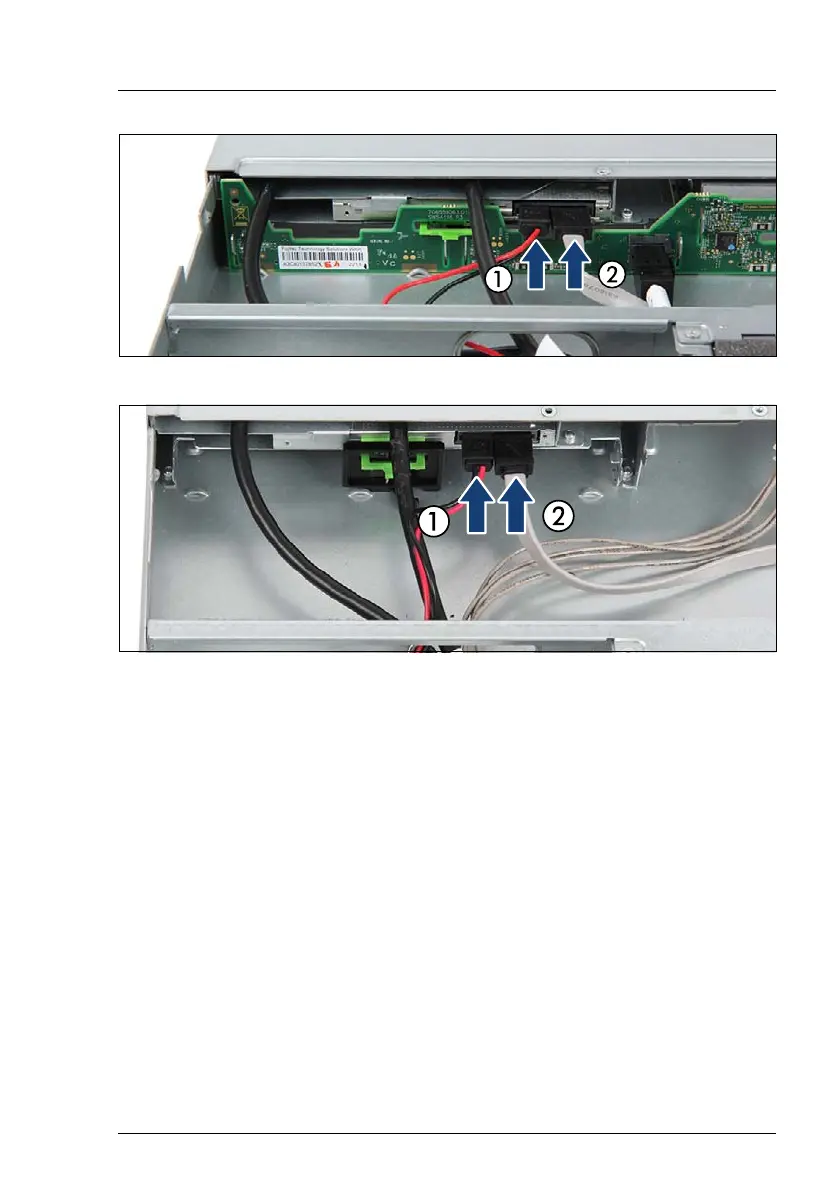

Figure 163: Connecting cables (example with 2nd 2.5-inch HDD backplane)
Figure 164: Connecting cables (example without 2nd 2.5-inch HDD backplane)
Ê Connect the ODD power cable (1) to the ODD.
Ê Connect the SATA cable (2) to the ODD.
For the cable plan see section "Cabling plans" on page 312.
I The ODD power cable and the SATA cable are preinstalled.
12.2.1.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Resuming BitLocker functionality" on page 95
