186 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.1 Basic information

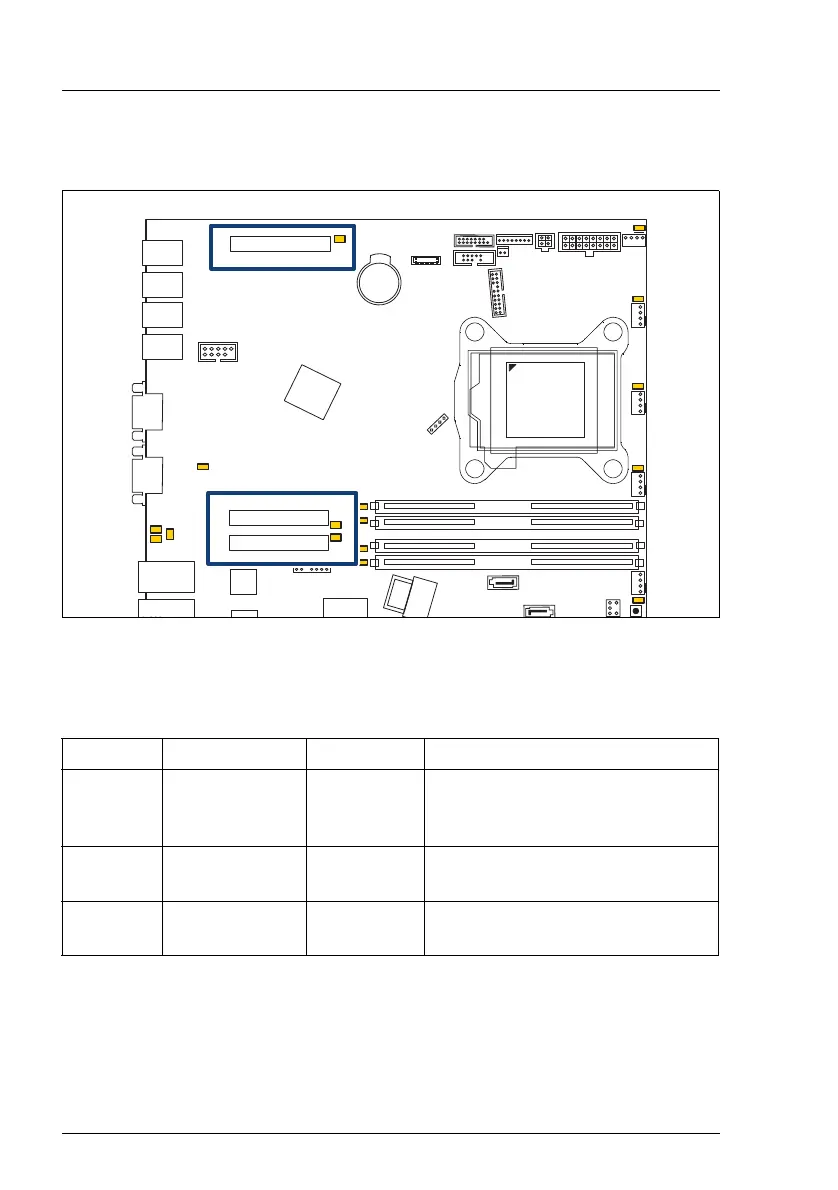

Figure 101: PCI slots for riser cards
9.1.1 Equipping the PCIe slots
I As an option a full height riser module can be installed (see section
"Upgrading to the full height riser module" on page 210). In this case the
slot 2 is not available and slot 3 can be equipped with a full height
expansion card.
PCI slot Riser module Type Description
Slot 1 Riser module 1 PCIe G3 x8
(x8 wired)
Low-profile slot, maximum length
175 mm; dedicated slot for
modular RAID controller
Slot 2 Riser module 2 PCIe G3 x8
(x4 wired)
Low-profile slot, maximum length
175 mm
Slot 3 Riser module 3 PCIe G3 x8
(x8 wired)
Low-profile slot, maximum length
175 mm
P30
PWR1
PWR2
FRONTPANEL1
Intel
C236
iRMC
Riser card (x4)
Riser card (x8)
CPU
Battery
TPM
Riser card (x8)
Shared
LAN
Standard
LAN
UFM
USB 3.0
USB 3.0
USB 3.0
USB 3.0
Slot3
Slot2
Slot1
Jumper
SATA1-4
DIMM2A
DIMM1A
DIMM2B
DIMM1B
External connectors
VGA
COM1
Intel
Intel
i210
HDD LED
USB3.0
FRONT
FAN2 SYS
PWR3
PC98
FRONTPANEL2
SATA5
DOM
FAN1
SYS
FAN3
SYS
FAN5
SYS
FAN4
SYS
