300 Upgrade and Maintenance Manual RX1330 M3
System board and components
Ê Remove the riser module 1 as described in section "Removing a riser
module" on page 66.
14.6.2.2 Removing the iRMC microSD card

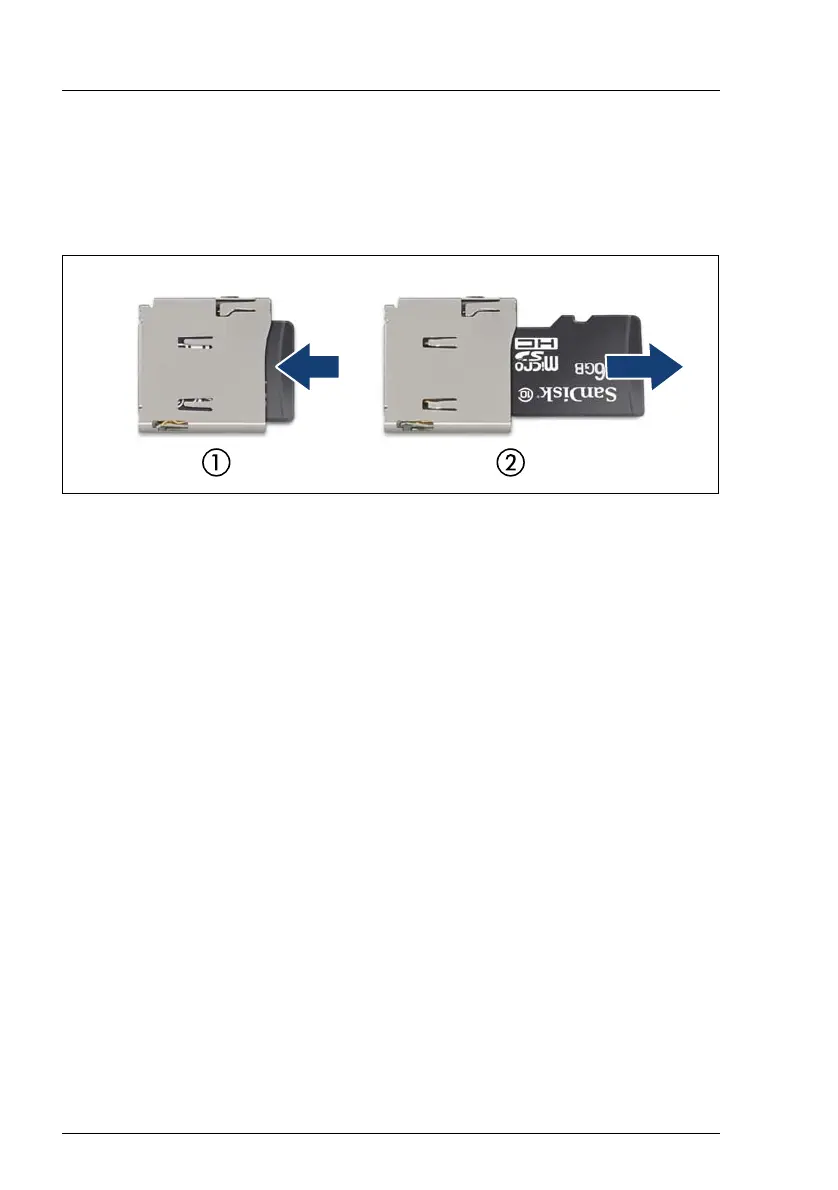

Figure 212: Removing the iRMC microSD card
Ê To eject the iRMC microSD card, gently push it in and then let go (1).
Ê Pull the iRMC microSD card straight out of its slot (2).
Destroying the defective iRMC microSD card
V CAUTION!
The iRMC microSD card contains customer information. After replacing
the iRMC microSD card, hand the defective card over to the customer. If
the customer requests disposal of the defective iRMC microSD card,
proceed as follows:
Ê Using a pair of side-cutting pliers, cut the iRMC microSD card in half.
14.6.2.3 Concluding steps
Ê Install the riser module 1 as described in section "Installing a riser module"
on page 68.
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
