RX1330 M3 Upgrade and Maintenance Manual 261
Ê If applicable, open the cable tie and disconnect the front VGA cable (3).
I Please do not cut the cable tie.
Ê If applicable, remove the front VGA board with the front VGA connector as
described in section "Removing the front VGA board" on page 266.
13.2.1.3 Installing the front panel module
Ê If applicable, install the front VGA board with the front VGA connector as
described in section "Installing the front VGA board" on page 264.

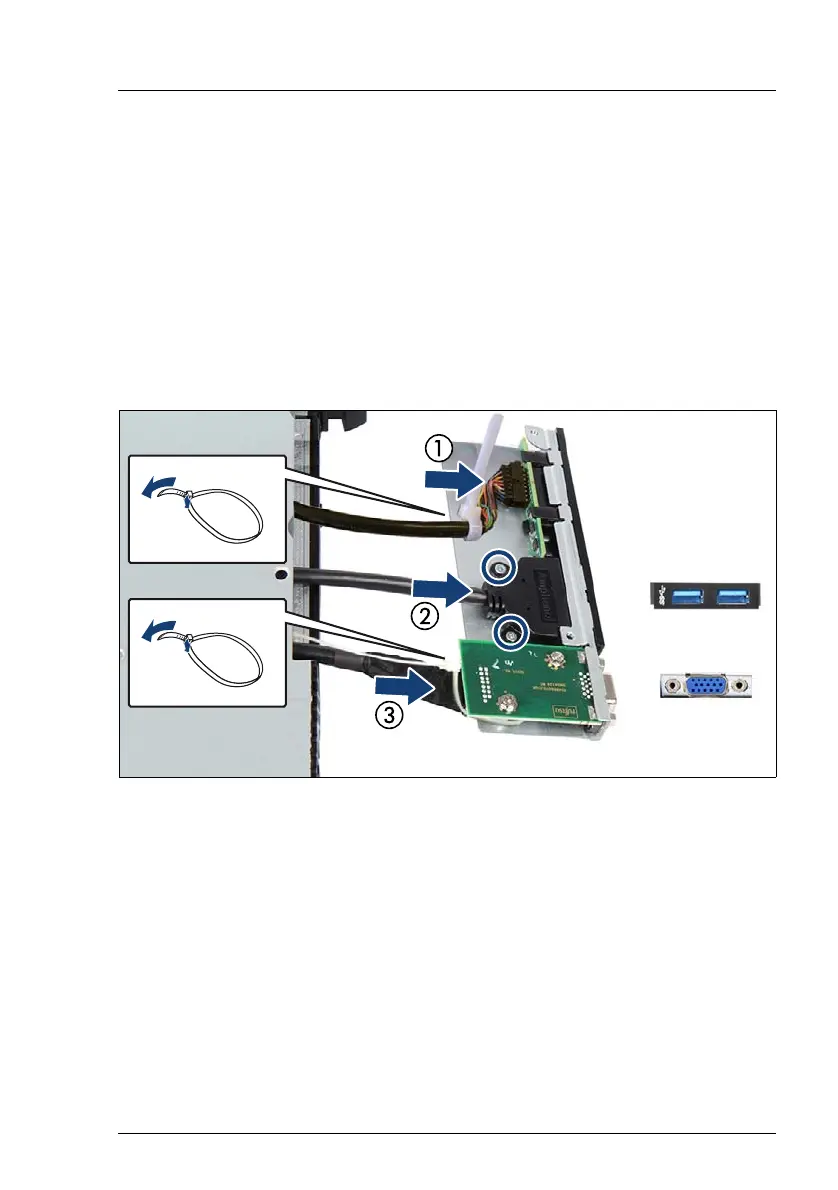

Figure 174: Connecting cables to the front panel module
Ê Connect the front panel cable and secure it with the cable tie (1).
Ê Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
Ê If applicable, connect the front VGA cable to the front VGA board and secure
it with the cable tie (3).
