RX1330 M3 Upgrade and Maintenance Manual 177
Hard disk drive (HDD) / solid state drive (SSD)

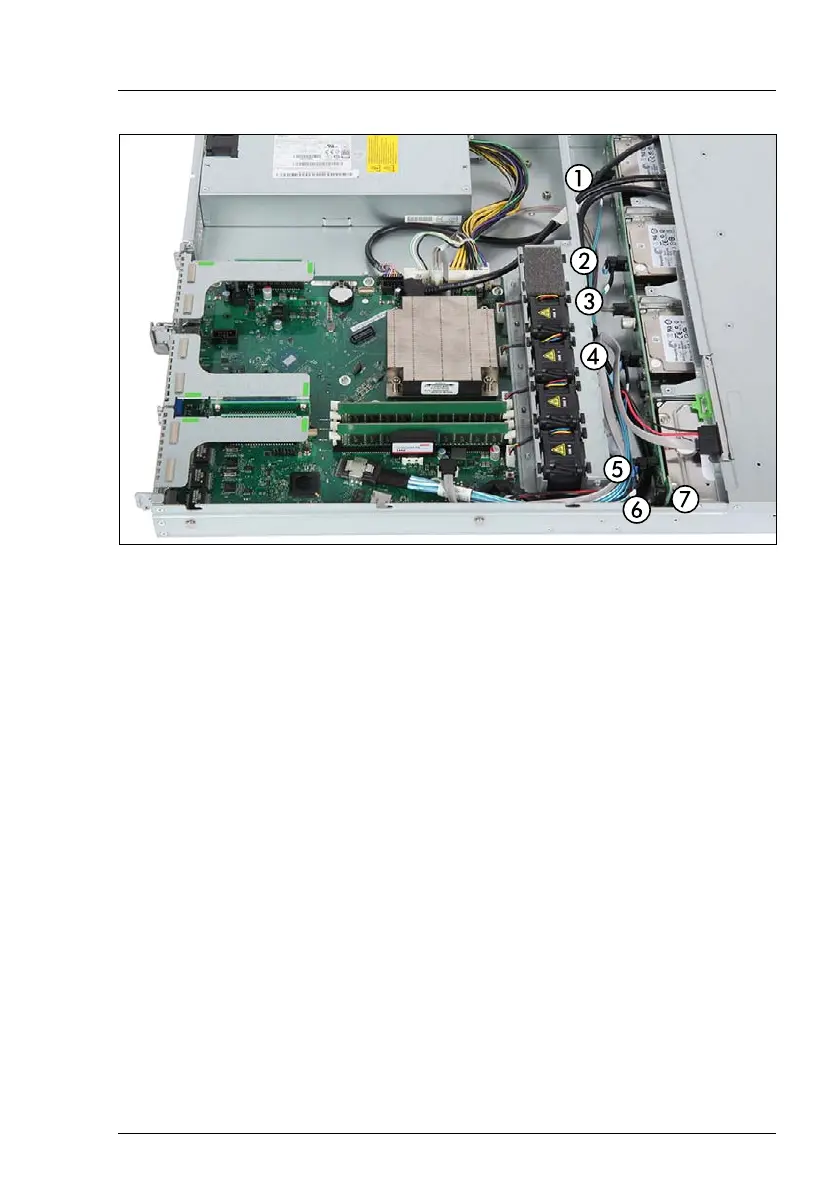

Figure 95: Connecting the cables to the 3.5-inch HDD backplane
Ê Connect the following cables to the HDD backplane:
– SAS/SATA data cable:
(1), (2), (4), (5) to connectors "P1", "P2", "P3", "P4" according to the
length
(6) plug P6 to connector "SGPIO"
– (3) power cable to connector "PWR"
– (7) OOB cable to connector "SMBus" (if applicable)
For the cable plan see section "Cabling plans" on page 312.
7.3.5.4 Concluding steps
Ê Insert all HDD modules, see section "Installing a 3.5-inch HDD module" on
page 170.
I Make sure that you reinstall the HDD module in the bay it was located
before the HDD backplane replacement.
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
