RX1330 M3 Upgrade and Maintenance Manual 217
Expansion cards and backup units
Ê If applicable, install the TFM as described in section "Installing the new TFM"
on page 208.
Ê Connect the FBU adapter cable to the TFM as described in section
"Installing the new TFM" on page 208.
Ê Install the RAID controller with the TFM as described in section "Installing an
expansion card" on page 197.

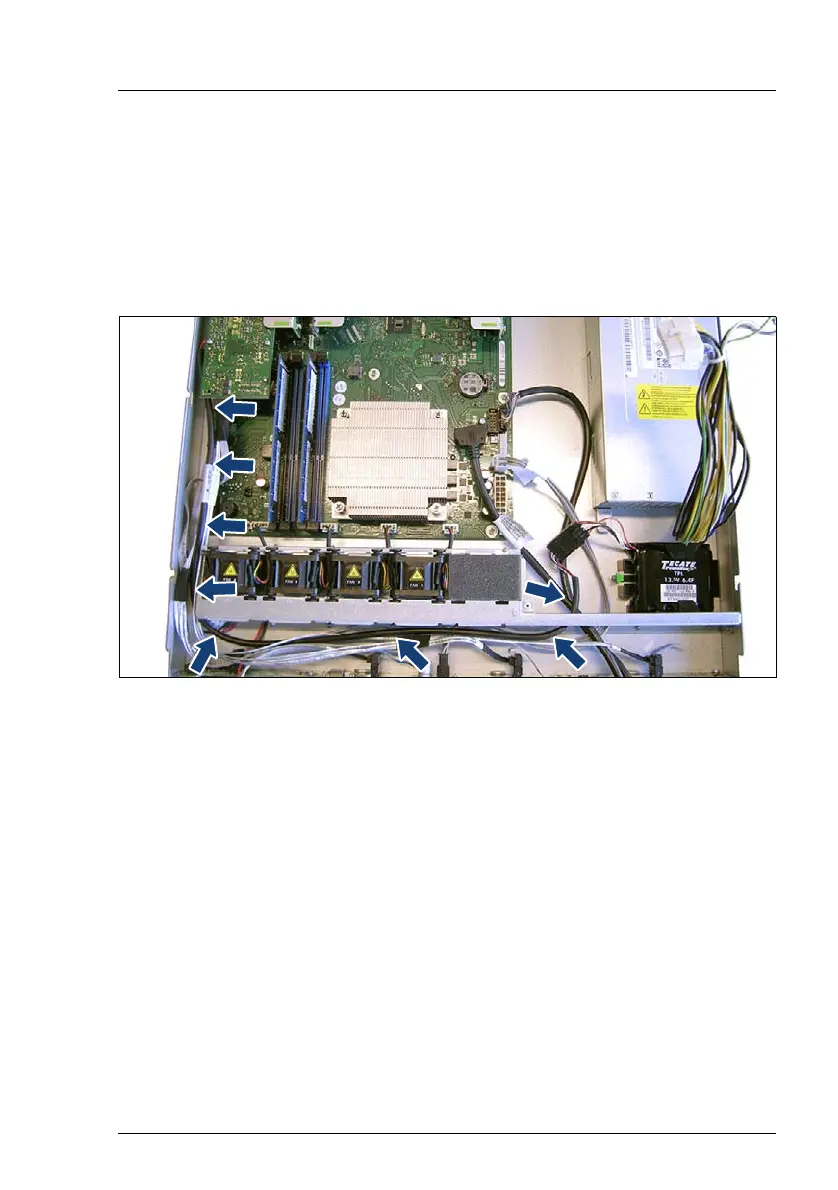

Figure 136: Routing the FBU cable
Ê Route the FBU cable as shown in the figure.
9.5.1.4 Concluding steps
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Updating expansion card firmware" on page 82
