210 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.4.6 Upgrading to the full height riser module

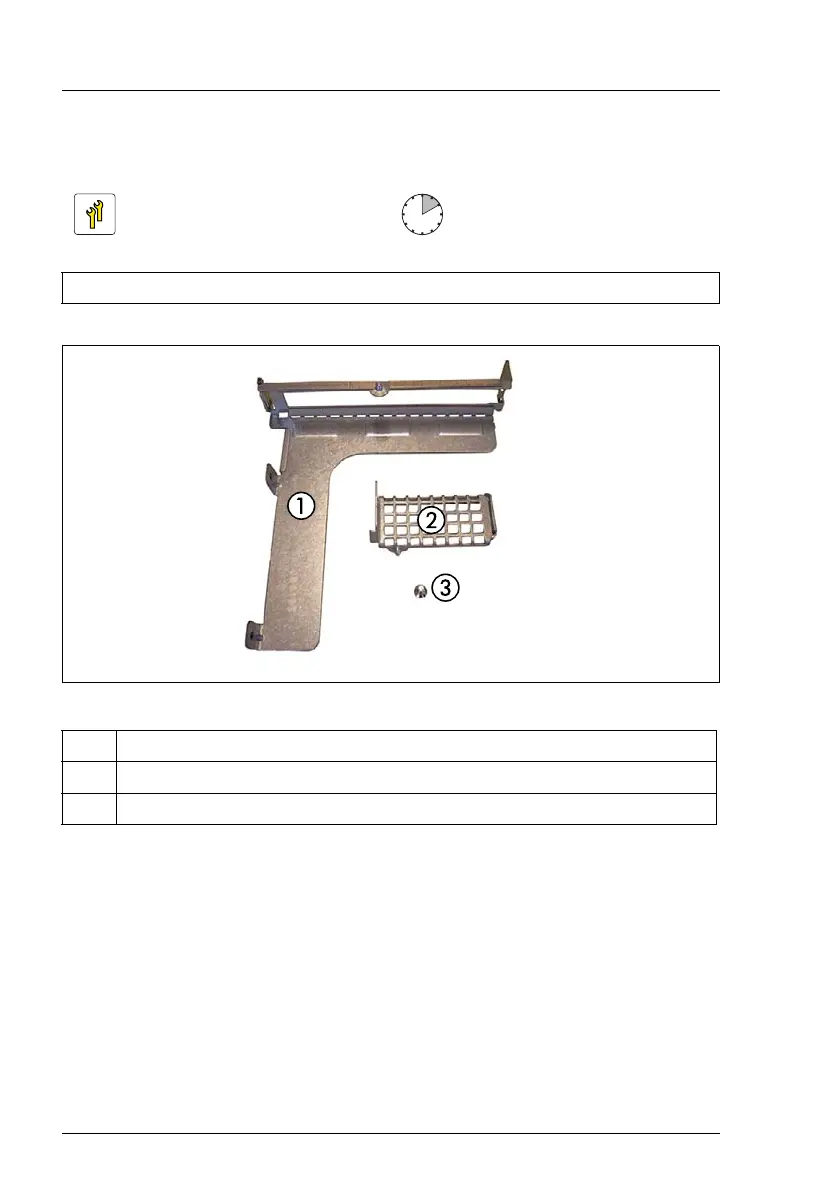

Figure 125: Upgrade kit
9.4.6.1 Preliminary steps
Ê "Shutting down the server" on page 53
Ê "Disconnecting the power cord" on page 54
Ê "Getting access to the component" on page 55
Ê Remove the riser module 2 and the riser module 3 as described in section
"Handling riser modules" on page 66.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
1 Full height riser module
2 Extension bracket
3Screw
