200 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.4.2.3 Installing the slot cover

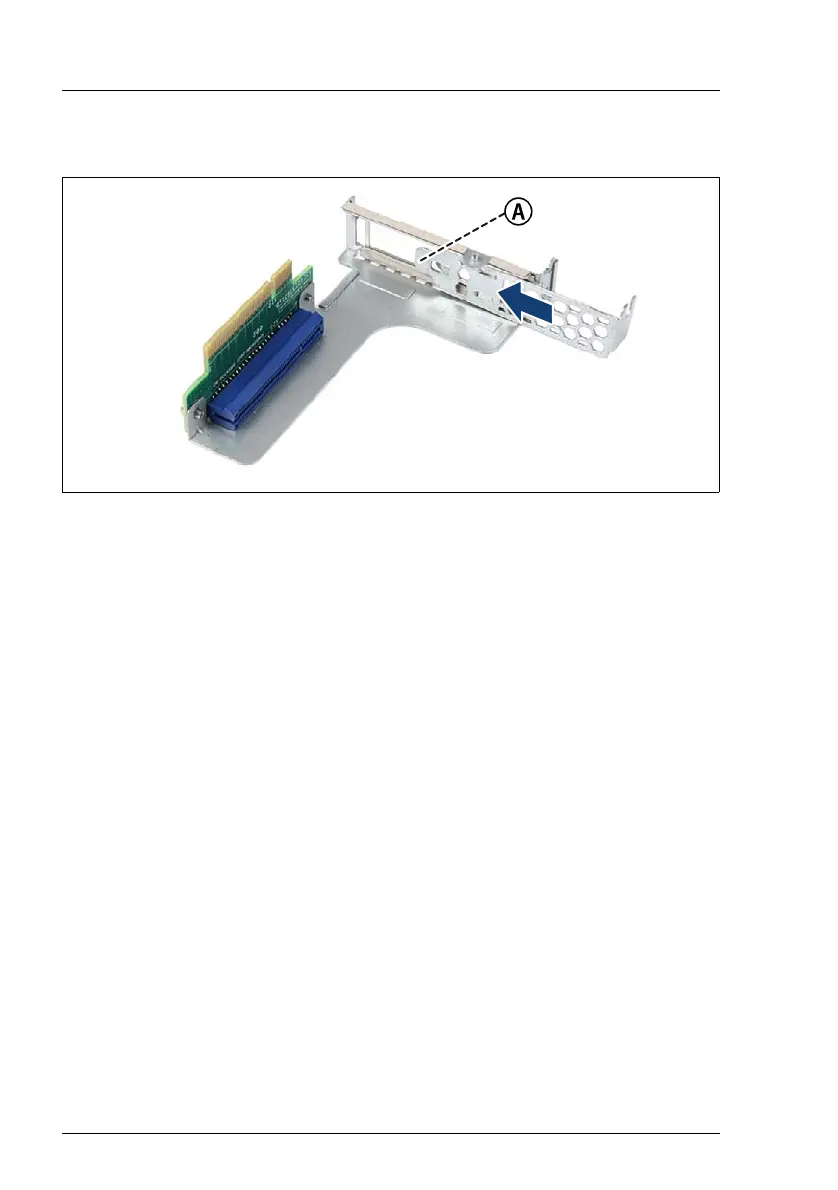

Figure 117: Installing the slot cover - example riser module 1
Ê Insert the slot cover. Make sure that the lug on the slot cover (A) clicks into
place in the corresponding hole.
9.4.2.4 Concluding steps
Ê Install the corresponding riser module as described in section "Installing a
riser module" on page 68.
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
Ê "Resuming BitLocker functionality" on page 95
