RX1330 M3 Upgrade and Maintenance Manual 29
2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
List of used screws (not valid for Japan)
Screw driver/
bit insert
Torque
Screw Usage Type
Phillips
PH2 / (+) No. 2
0.6 Nm
Slot bracket to
chassis,
system board
M3 x 4.5mm
(silver)
C26192-Y10-C67 /
C26192-Y10-C207
Phillips
PH2 / (+) No. 2
0.6 Nm
Slot bracket to
expansion
card
M3 x 3.5 mm
(silver)
C26192-Y10-C151
Phillips
PH2 / (+) No. 2
0.6 Nm
3.5-inch HDD UNC 6-32 x 3.5 mm
(silver)
A3C40151505
Phillips
PH1 / (+) No. 1
0.4 Nm
Front VGA,
2.5-inch HDD
M3 x 3.5 mm
(silver)
C26192-Y10-C102
Special bit insert
0.6 Nm
TPM screw
REM 3 x 15 mm
(black)
C26192-Y10-C176

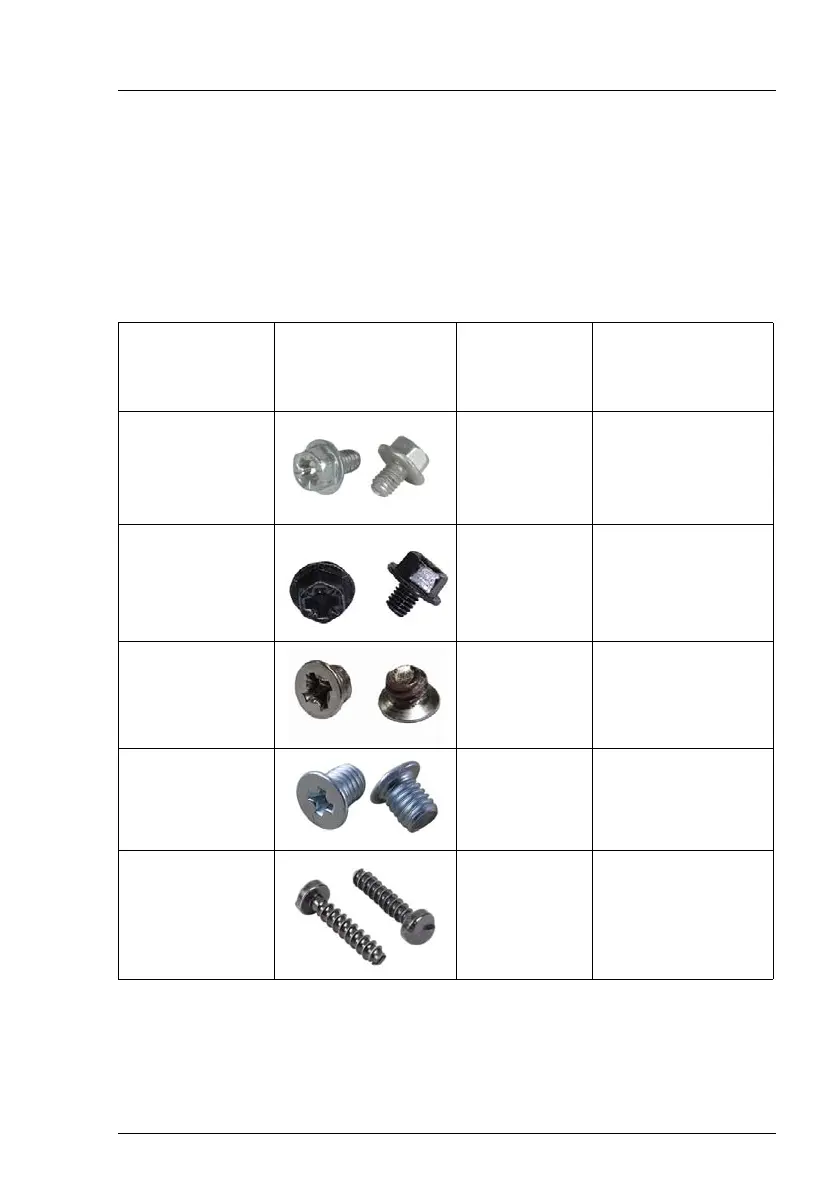

Table 2: List of used screws (not valid for Japan)
