RX1330 M3 Upgrade and Maintenance Manual 205
Expansion cards and backup units
9.4.4.3 Installing the riser card

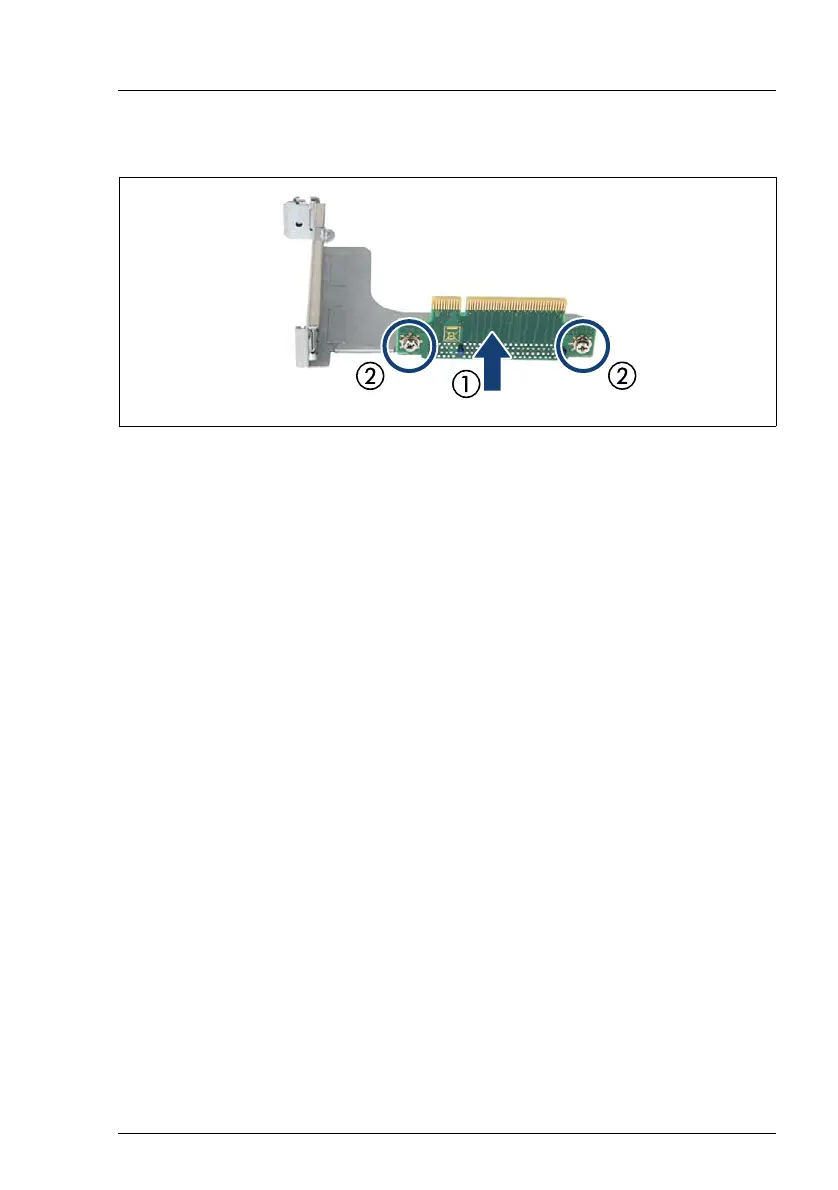

Figure 119: Installing the riser card - example riser module 1
Ê Insert the riser card (1).
Ê Fasten the riser card with two screws (2).
Ê Install the expansion card as described in section "Installing the expansion
card" on page 198.
9.4.4.4 Concluding steps
Ê Install the corresponding riser module as described in section "Installing a
riser module" on page 68.
Ê "Reassembling" on page 60
Ê "Connecting the power cord" on page 64
Ê "Switching on the server" on page 66
