218 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.5.2 Removing an FBU
V CAUTION!
● Dispose of used battery properly. Keep away from children.
● Do not throw flash backup units into the trash can. Batteries must be
disposed of in accordance with local regulations concerning special
waste.
9.5.2.1 Preliminary steps
Ê "Shutting down the server" on page 53
Ê "Disconnecting the power cord" on page 54
Ê "Getting access to the component" on page 55
9.5.2.2 Removing the FBU with the holder

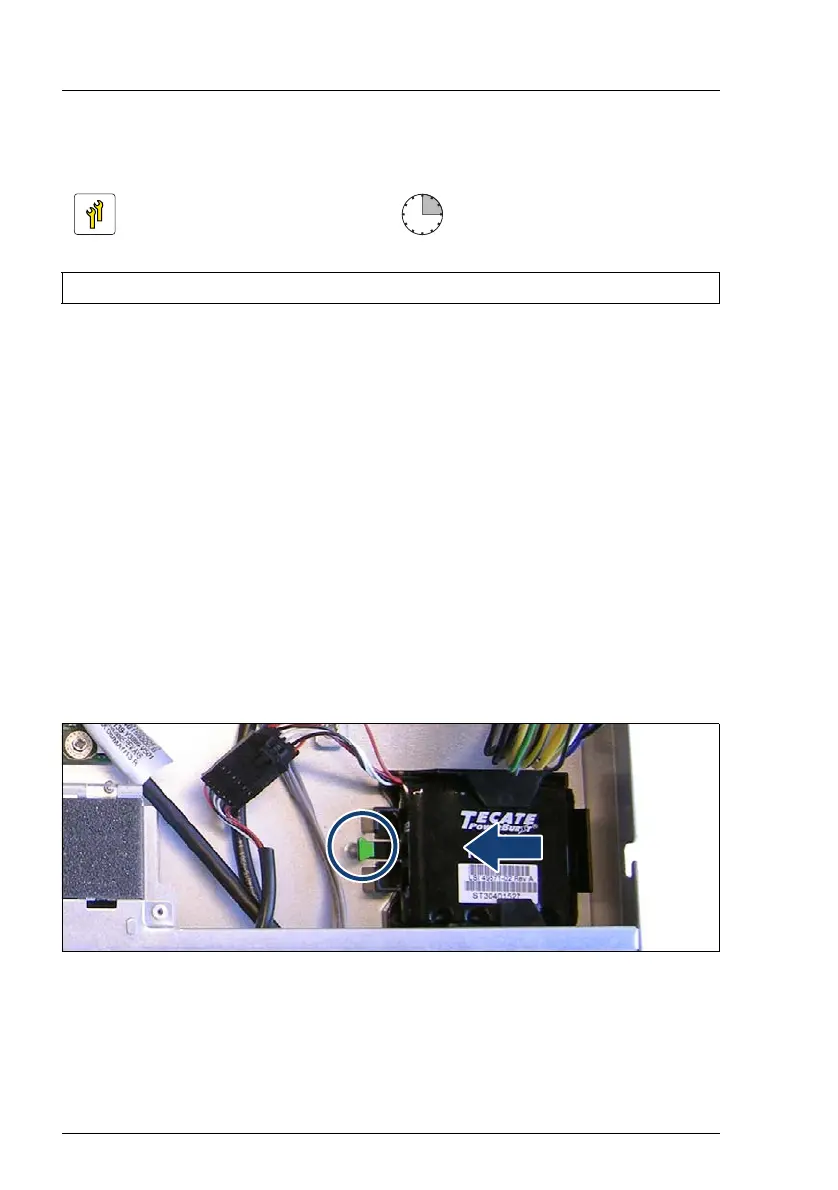

Figure 137: Removing the FBU with the holder
Ê Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: tool-less
To Next Page
