Accessible drives

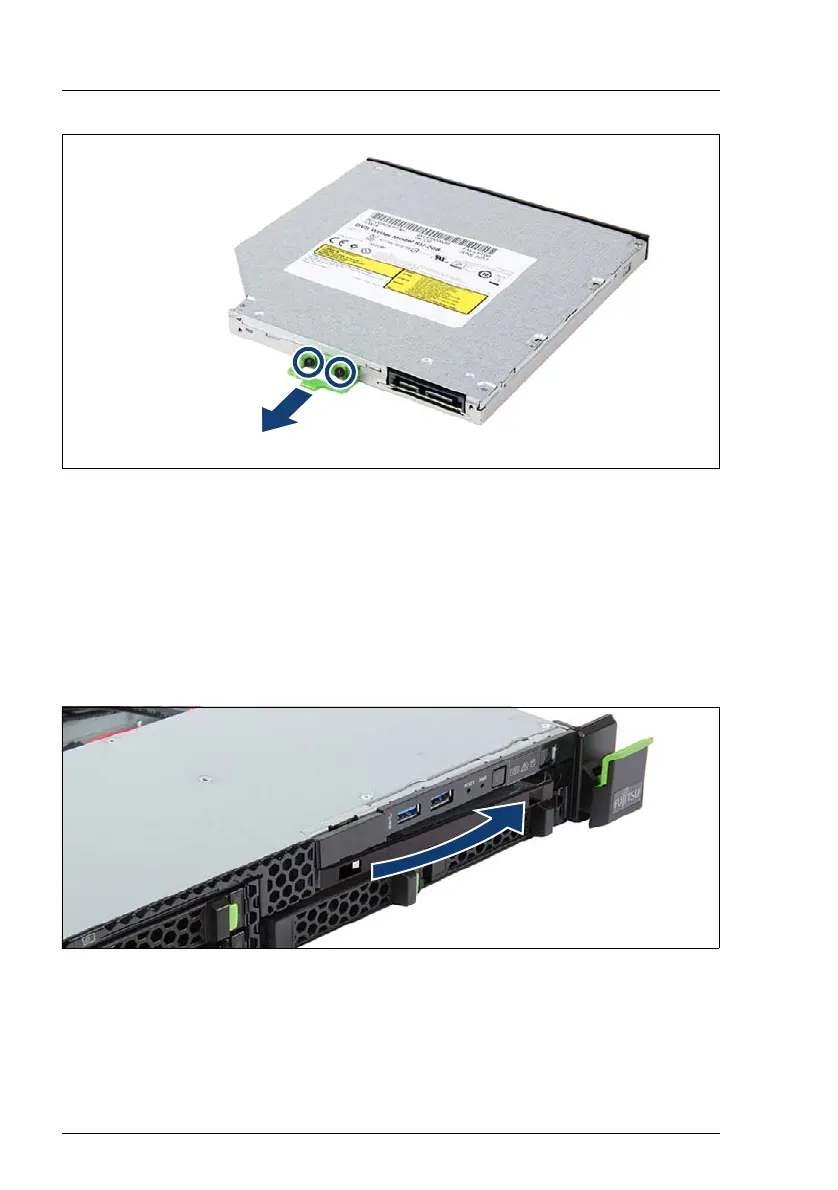

Figure 168: Removing the ODD latch from the ODD
Ê Remove the two screws (see circles).
Ê Remove the ODD latch (see arrow).
Ê If no new ODD will be installed: fasten the ODD latch with two screws to the
fan bridge (see figure 160).
12.2.2.3 Installing the dummy cover
Figure 169: Installing the dummy cover
Ê Push the dummy cover inward until it engages at the right side.
