56 Upgrade and Maintenance Manual RX1330 M3
Basic hardware procedures
4.4.1 Extending the server out of the rack
V CAUTION!
● Use the anti-tilt plate to prevent the rack from tipping when installing
the rack. Pulling the server out of the rack without having installed the
anti-tilt plate may cause the rack to tip over.
● Be careful not to pinch fingers or clothes when sliding out the server
or pushing it back. Failure to do so may cause injury.
● For further safety information, please refer to chapter "Important
information" on page 35.
Ê Remove all remaining external cables from the rear connector panel and
expansion cards.

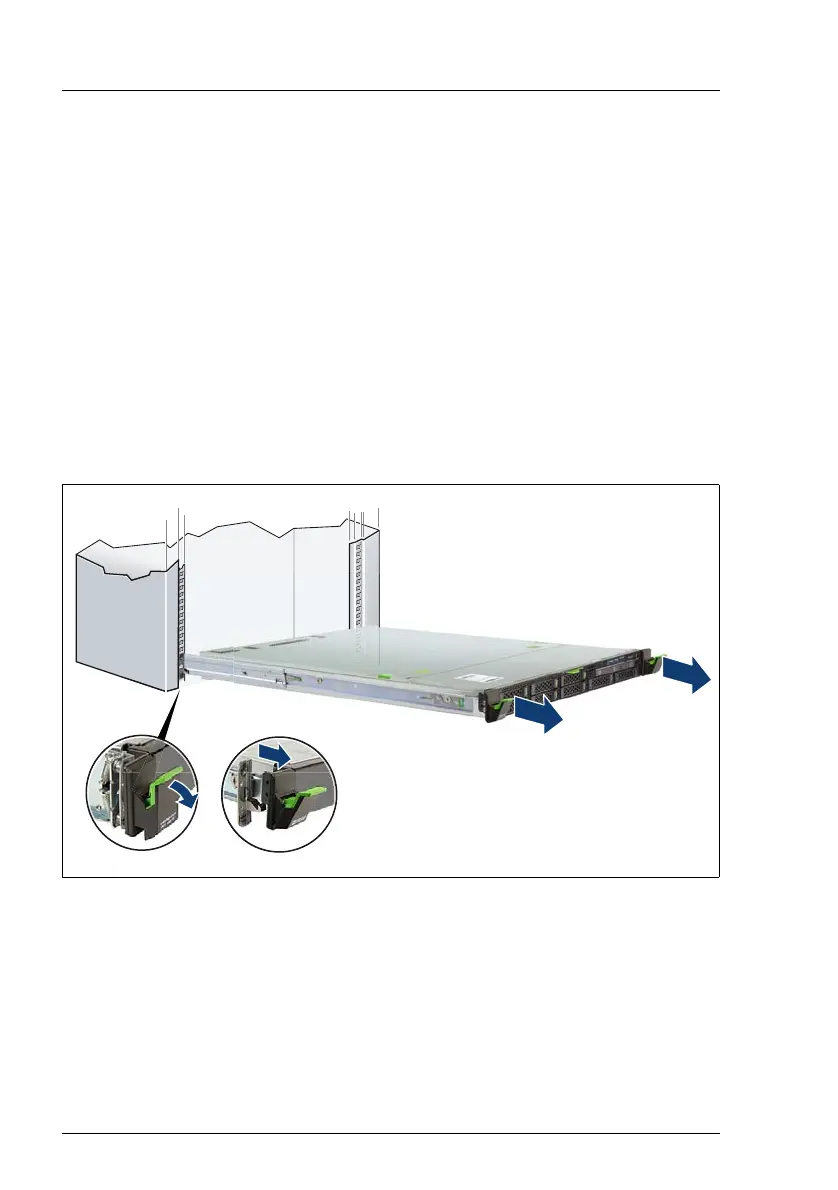

Figure 4: Extending the server out of the rack
Ê Fold down the two quick release levers (1).
Ê Pull the server out of the rack until it locks in place (2).
V CAUTION!
Do not use the extended server as a surface on which to put things
or as a work surface, and strictly avoid leaning on or against it.
햳
햳
햲
