Processor (CPU)
11.2.3 Removing the CPU

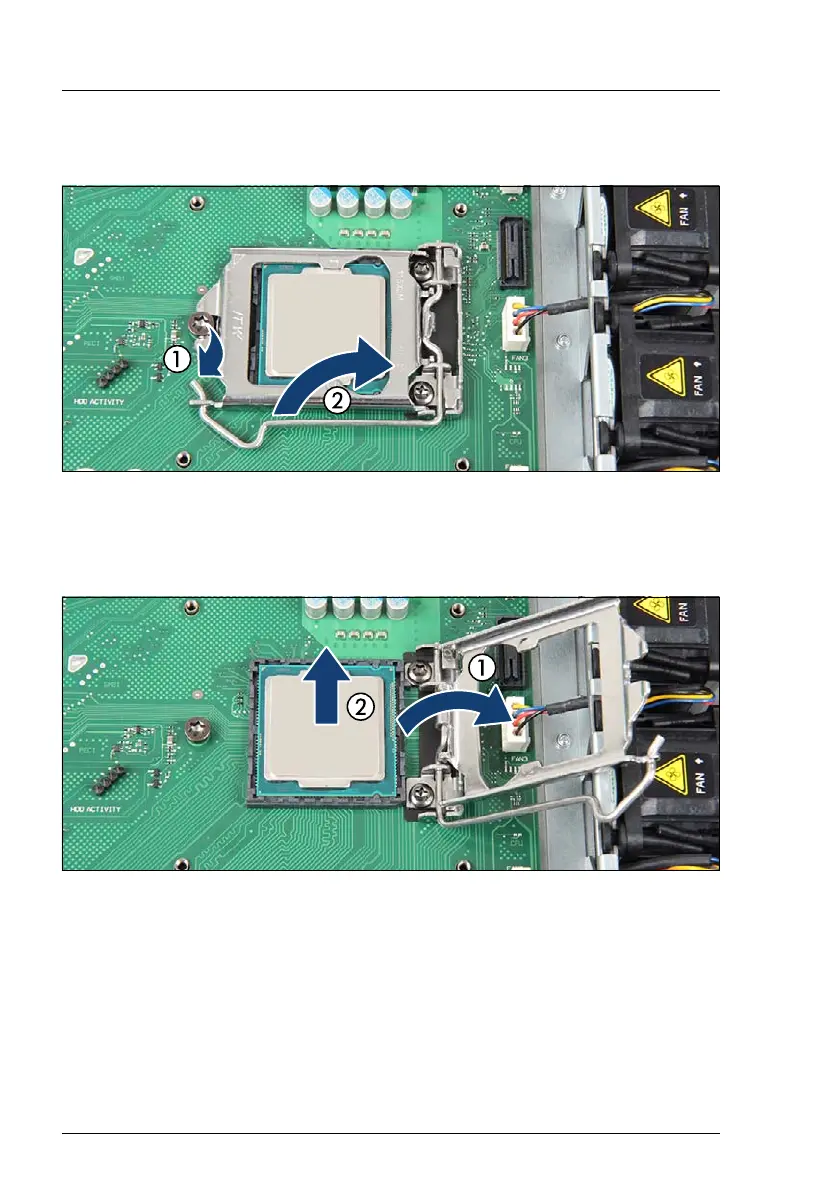

Figure 146: Unlatching the socket lever
Ê Unlatch the socket lever by pushing it down and away from the socket (1).
Ê Fold back the socket release lever (2).
Figure 147: Removing the CPU
Ê Rotate the socket lever to lift the load plate away from the socket (1).
Ê Make sure that the load plate is in the fully open position.
Ê Carefully remove the CPU from its socket in a vertical motion (2).
V CAUTION!
Be careful not to touch or bend the spring contacts on the CPU
socket.
