206 Upgrade and Maintenance Manual RX1330 M3
Expansion cards and backup units
9.4.5 Replacing a TFM
9.4.5.1 Preliminary steps
Ê "Locating the defective server" on page 50
Ê "Shutting down the server" on page 53
Ê "Disconnecting the power cord" on page 54
Ê "Getting access to the component" on page 55
9.4.5.2 Removing the defective TFM
Ê Remove the depending expansion card as described in section "Removing
the expansion card" on page 199.
Example RAID controller

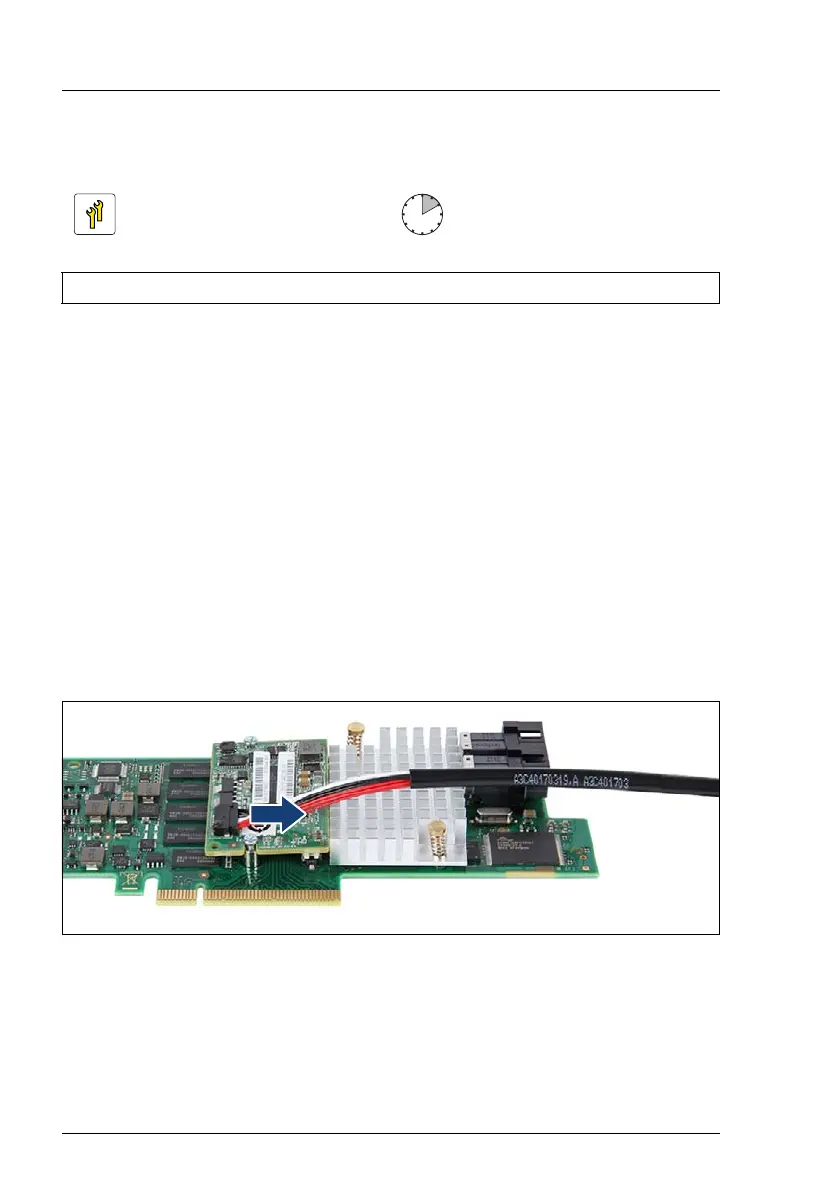

Figure 120: Disconnecting the FBU adapter cable from the TFM
Ê Disconnect the FBU adapter cable from the TFM.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
