Fujitsu PRIMERGY RX1330 M3

RX1330 M3 Upgrade and Maintenance Manual 207
Expansion cards and backup units

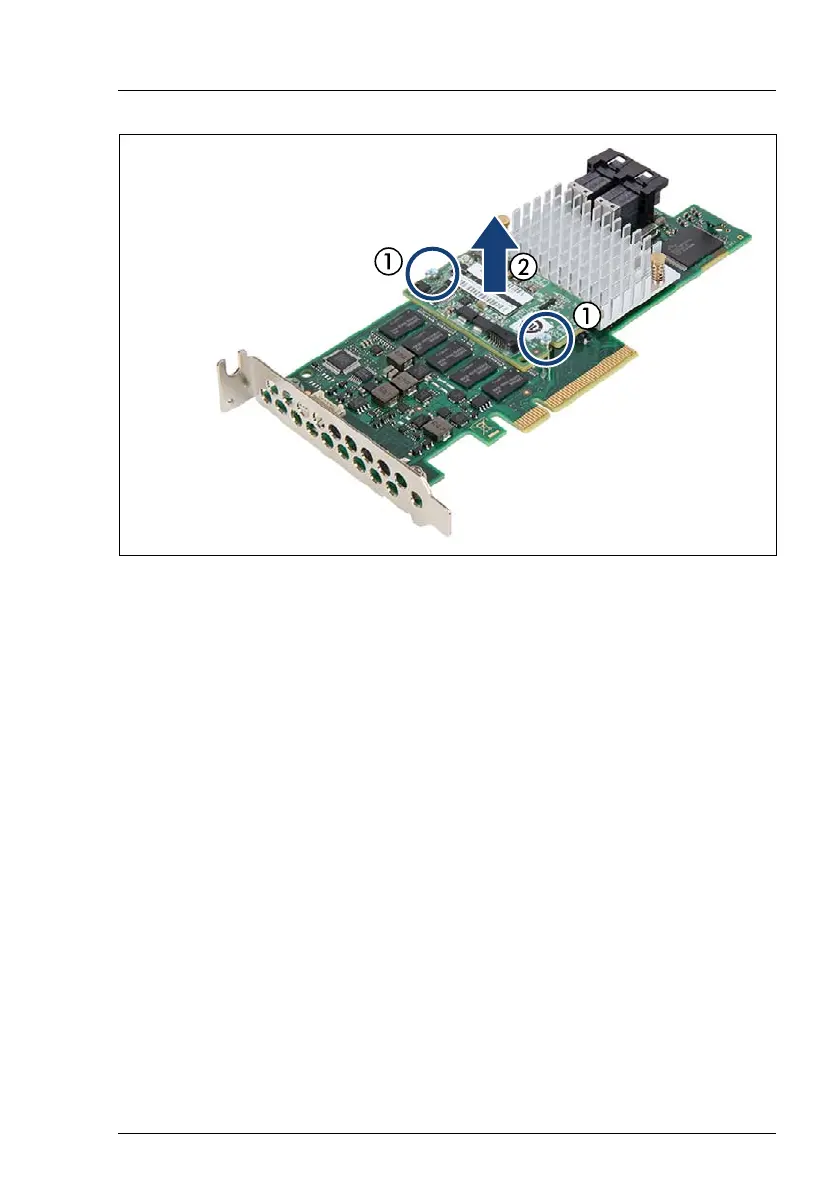

Figure 121: Removing the TFM
Ê Remove the two screws (1).
Ê Remove the TFM (2).
I Note for replacing the TFM:
The two spacer bolts can remain on the RAID controller.
