246 Upgrade and Maintenance Manual RX1330 M3
12.1 Basic information
You can install one 5.25-inch slimline ODD. The installation bay depends on the
2.5-inch or 3.5-inch HDD configuration.
The proceeding for installing/removing is identic except the routing of the cables
and the depending ODD power connector on the system board (see section
"Onboard connectors" on page 324).
3.5-inch HDD configuration

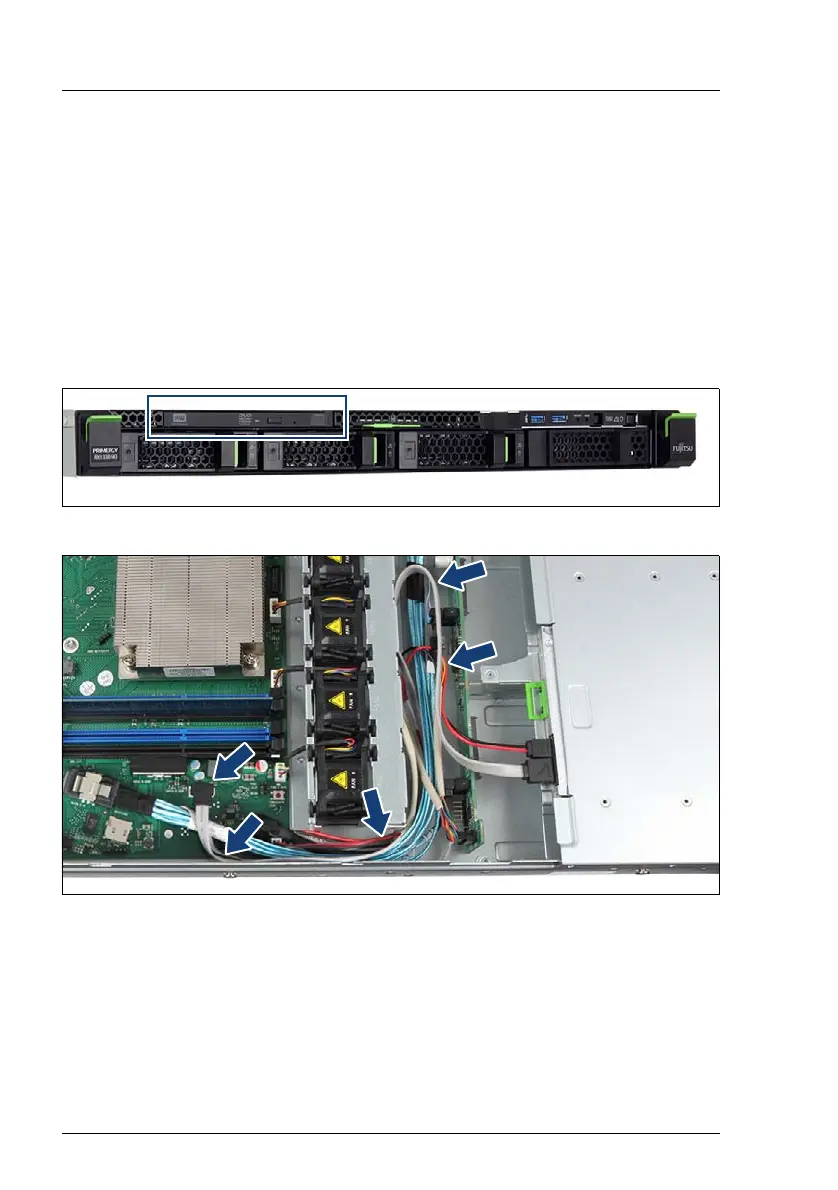

Figure 155: Position of the ODD bay - example 3.5-inch HDD configuration
Figure 156: Routing ODD cables - example 3.5-inch HDD configuration
