RX1330 M3 Upgrade and Maintenance Manual 199
Expansion cards and backup units
9.4.2 Removing an expansion card
9.4.2.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 71
Ê "Shutting down the server" on page 53
Ê "Disconnecting the power cord" on page 54
Ê "Getting access to the component" on page 55
Ê Remove the corresponding riser module as described in section "Removing
a riser module" on page 66.
9.4.2.2 Removing the expansion card
Ê If necessary, disconnect the cables from the expansion card.

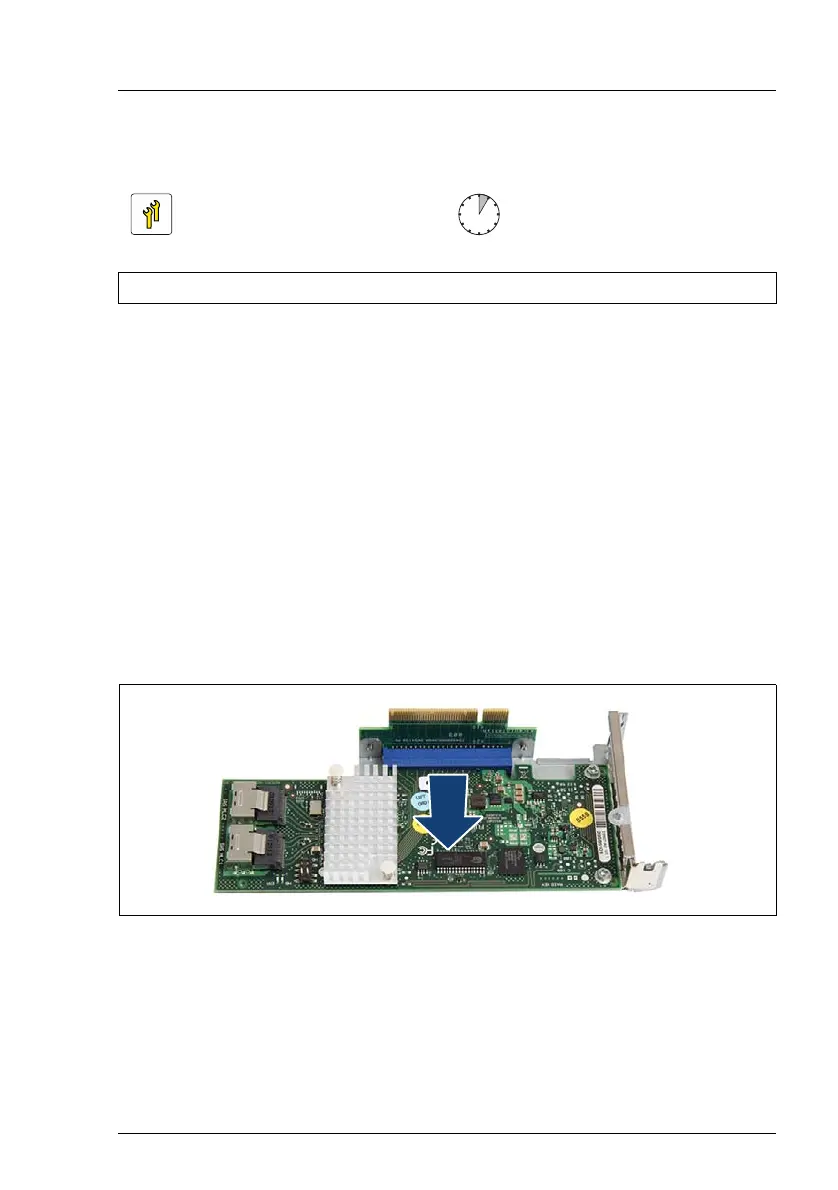

Figure 116: Removing the expansion card - example riser module 1
Ê Pull out the expansion card from the riser card slot.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
