Fujitsu PRIMERGY RX1330 M3

54 Upgrade and Maintenance Manual RX1330 M3
Basic hardware procedures
4.3 Disconnecting the power cord
Standard power supply

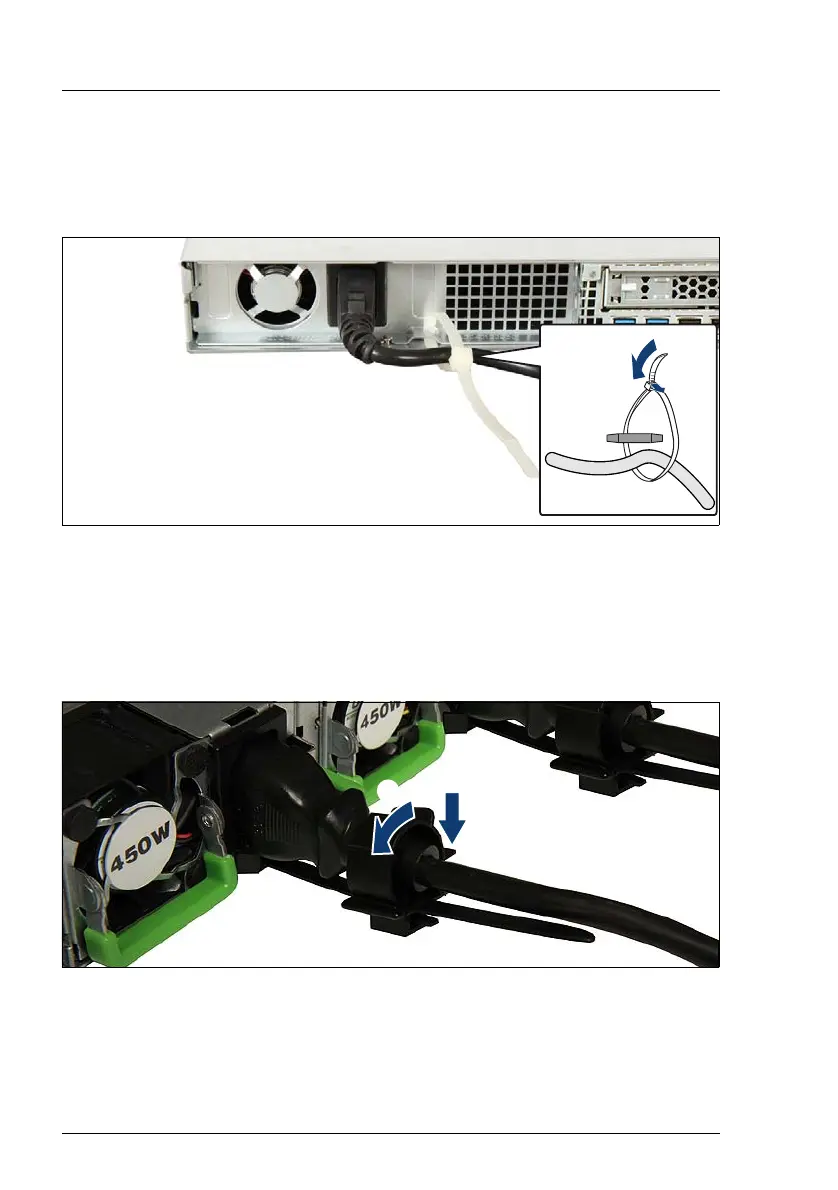

Figure 2: Unlocking the cable tie of a standard PSU
Ê Pull out on the locking lever on the cable tie (1) and loosen the loop (2).
Ê Disconnect the power cord from the PSU and remove it from the cable tie.
Redundant power supply
Figure 3: Unlocking the cable clamp of a PSU
Ê Press the cable clamp down until it disengages (1).
Ê Open the cable clamp (2).
Ê Disconnect the power cord from the PSU and remove it from cable clamp.
햲
햳
/
0
