Fujitsu PRIMERGY RX1330 M3

262 Upgrade and Maintenance Manual RX1330 M3
Front panel

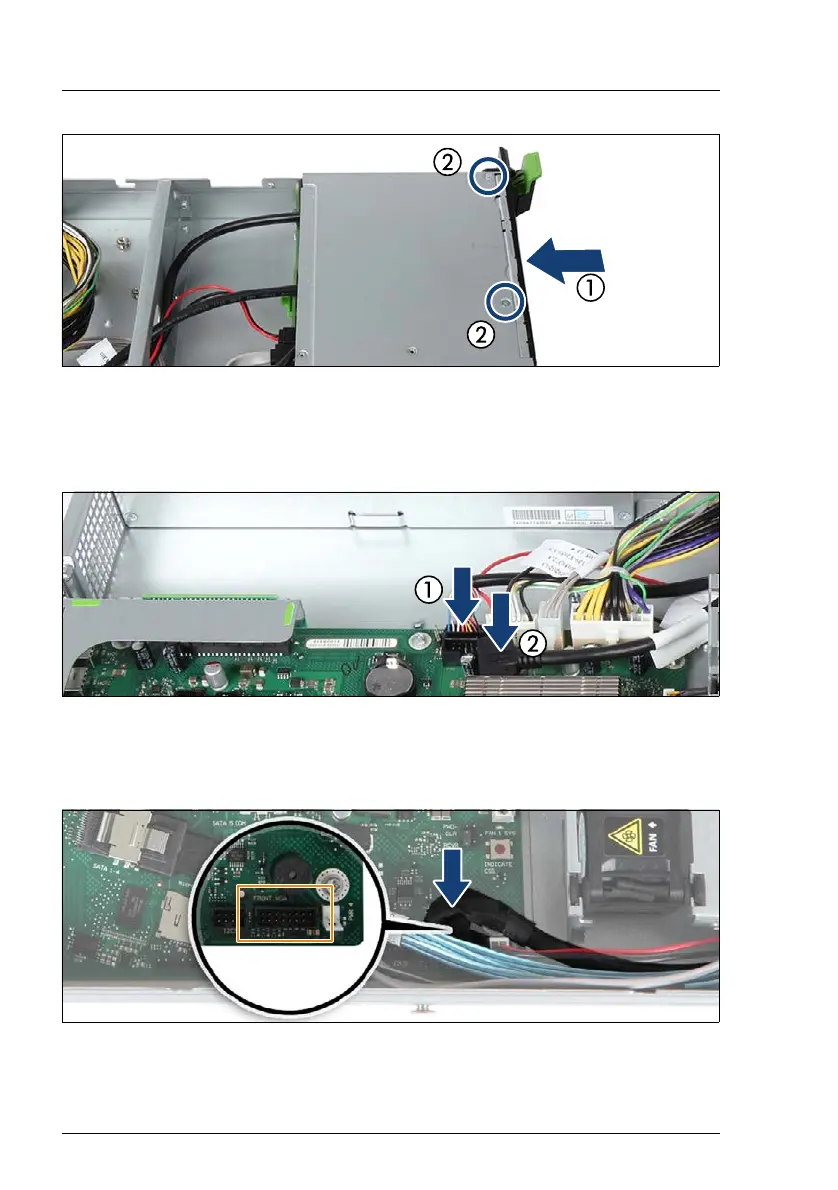

Figure 175: Installing the front panel module
Ê Push the front panel module in its bay (1).
Ê Fasten the front panel module with two screws (2).
Figure 176: Connecting the cables (A)
Ê Connect the front panel cable (1) and the front USB cable (2) to the system
board.
Figure 177: Connecting the cables (B)
Ê If applicable, connect the front VGA cable (black cable) to the system board.
