Accessible drives

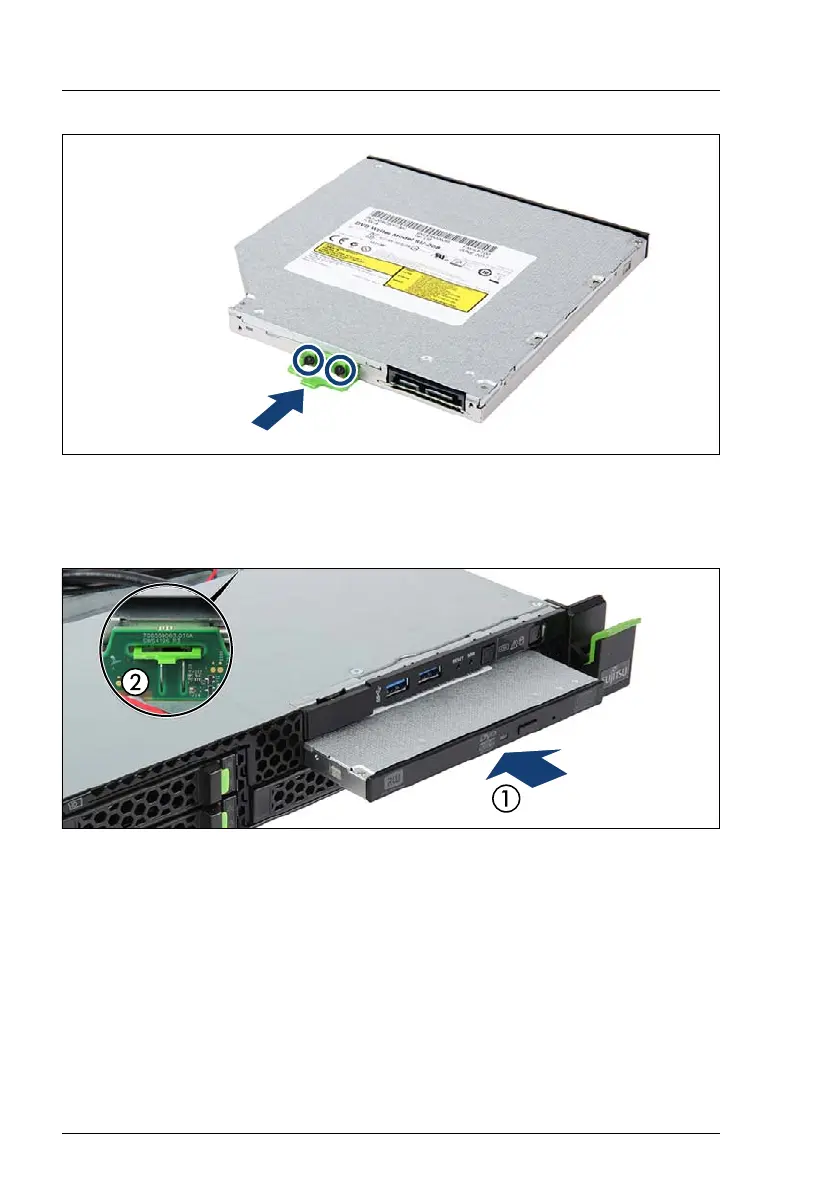

Figure 161: Installing the ODD latch on the ODD
Ê Fasten the ODD latch with two screws to the rear side of the ODD (see arrow
and circles).
Figure 162: Installing the ODD
Ê Push the ODD into the bay (1) simultaneously pressing the front of the ODD
slightly down until the ODD latch engages (2).
