Hard disk drive (HDD) / solid state drive (SSD)
Left side 4 x 2.5-inch HDD backplane (A3C40196780)

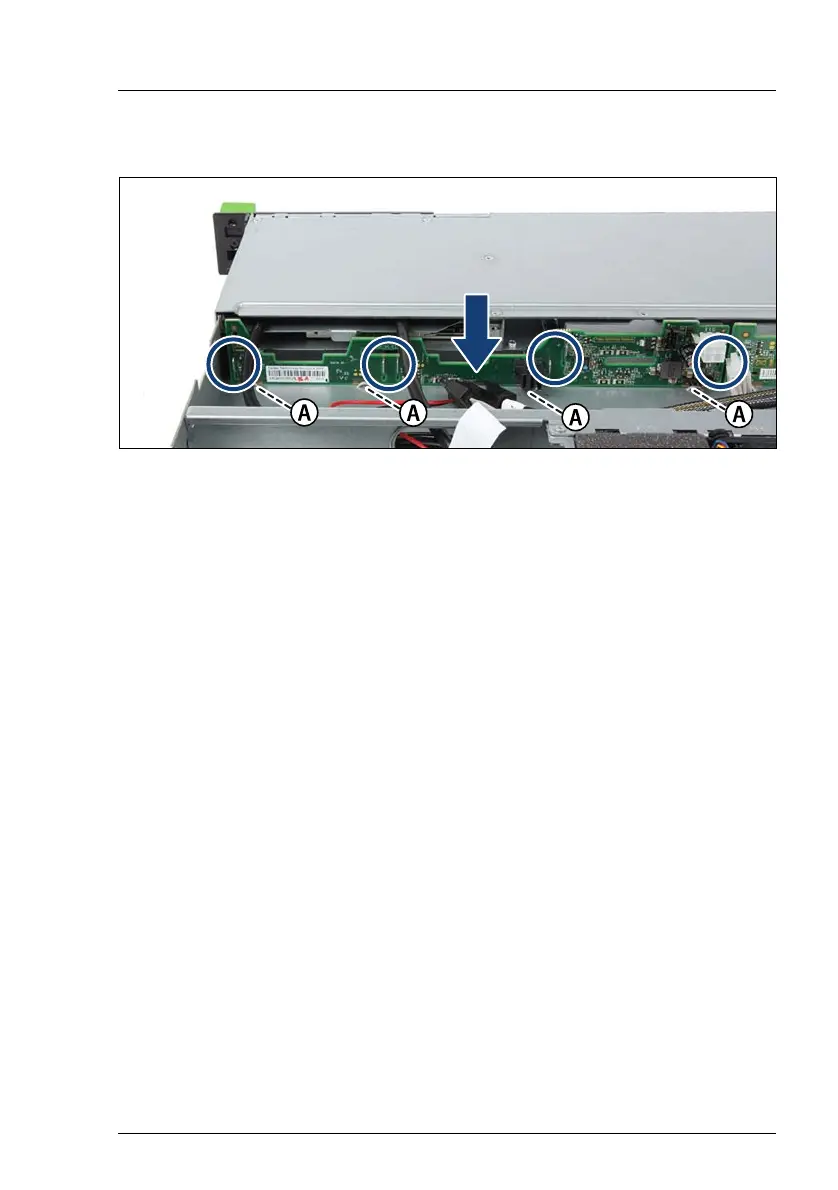

Figure 71: Installing the 4 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the six hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the HDD backplane fits
in the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
