154 Upgrade and Maintenance Manual RX1330 M3
Hard disk drive (HDD) / solid state drive (SSD)
Right side 4 x 2.5-inch HDD backplane (A3C40196777)

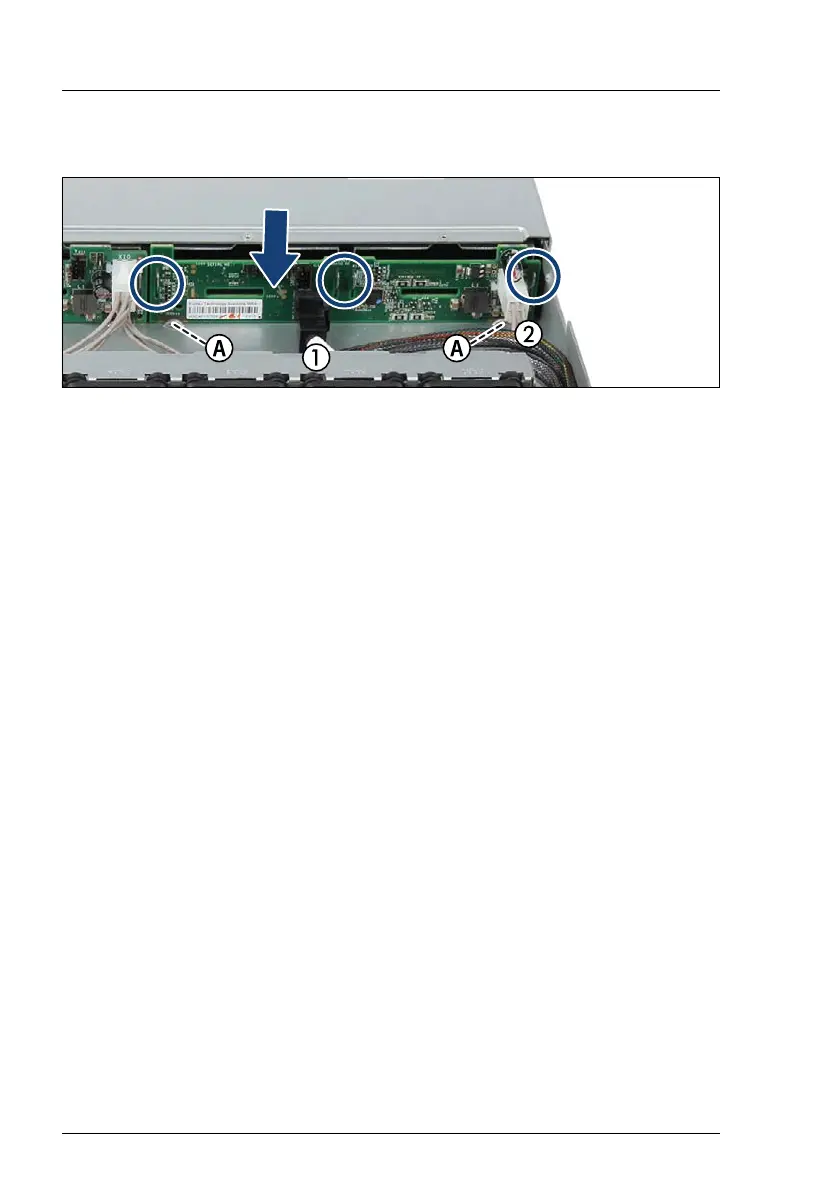

Figure 70: Installing the 4 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the four hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the HDD backplane fits
in the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Ê Connect the following cables to the HDD backplane:
– SAS cable to connector "X5" on the HDD backplane (1)
– Power cable to connector "X10" on the HDD backplane (2)
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane.
For the cable plan see section "Cabling plans" on page 312.
