128 Upgrade and Maintenance Manual RX1330 M3
Power supply unit (PSU)

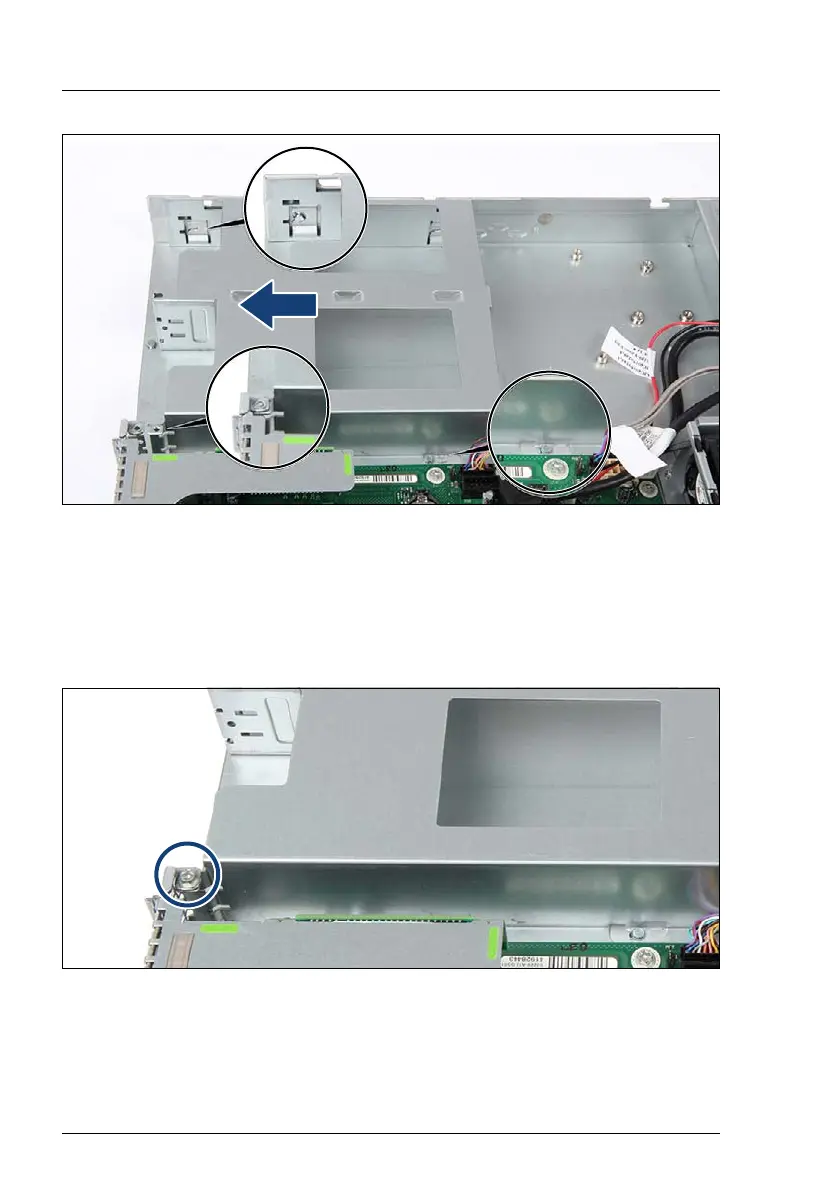

Figure 45: Inserting the PSU cage
Ê Insert the PSU cage in the housing and push it to the rear side.
V CAUTION!
The PSU cage must engage in the five bolts (positions see figure 44).
Three bolts are shown as examples in the close-ups.
Figure 46: Fastening the PSU cage
Ê Fasten the PSU cage with one screw.
