Power supply unit (PSU)
Installing the power distribution board

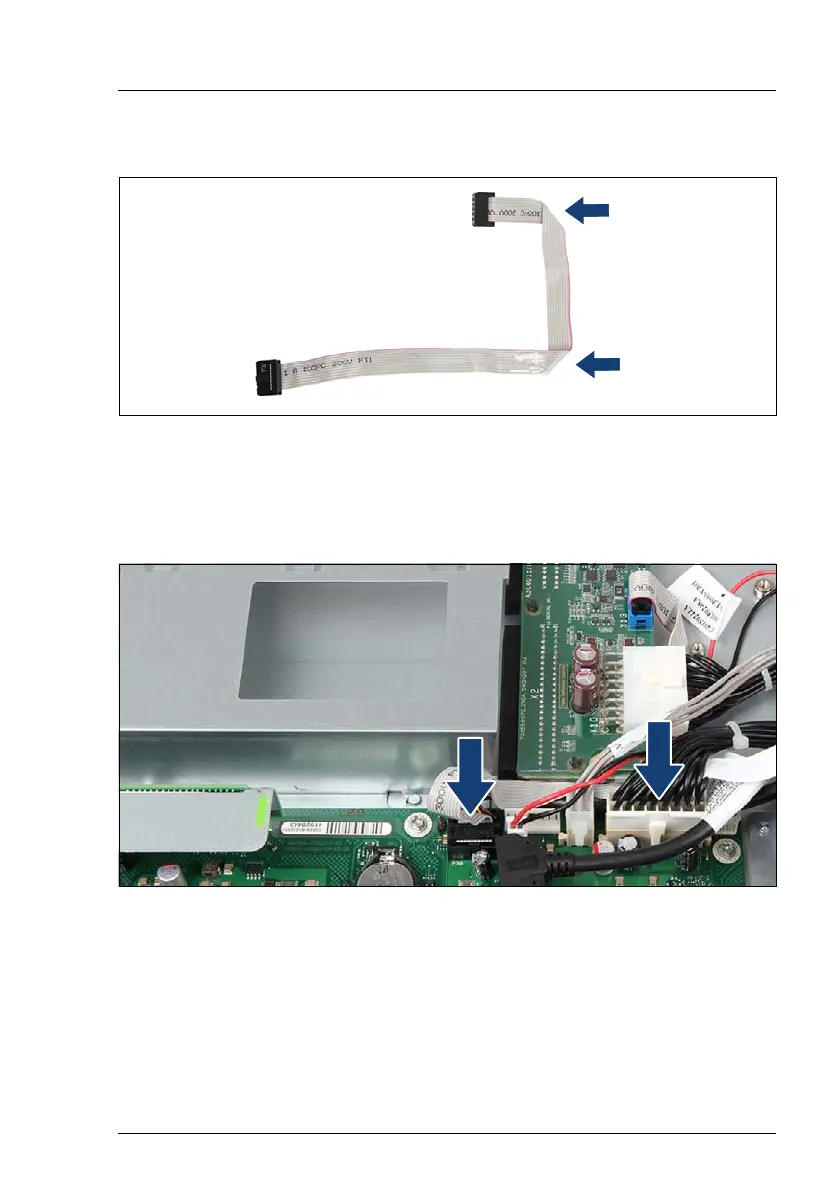

Figure 47: Folding the flat cable
Ê Fold the flat cable as shown.
Ê Install the power distribution board as described in section "Installing the
new power distribution board" on page 119.
Figure 48: Connecting the power cables to the system board
Ê Connect the two power cables to the system board connectors "P30" and
"PWR1".
For the cable plan see section "Cabling plans" on page 312.
