130 Upgrade and Maintenance Manual RX1330 M3
Installing hot-plug PSU and dummy cover
Ê Install the PSU as described in section "Installing a hot-plug PSU" on
page 110.
I The PSU must be installed in the first bay (left bay seen from rear
side). The dummy cover must be installed in the second bay.
Ê Install the dummy cover as described in section "Installing the dummy cover"
on page 115.
Installing the additional fan module

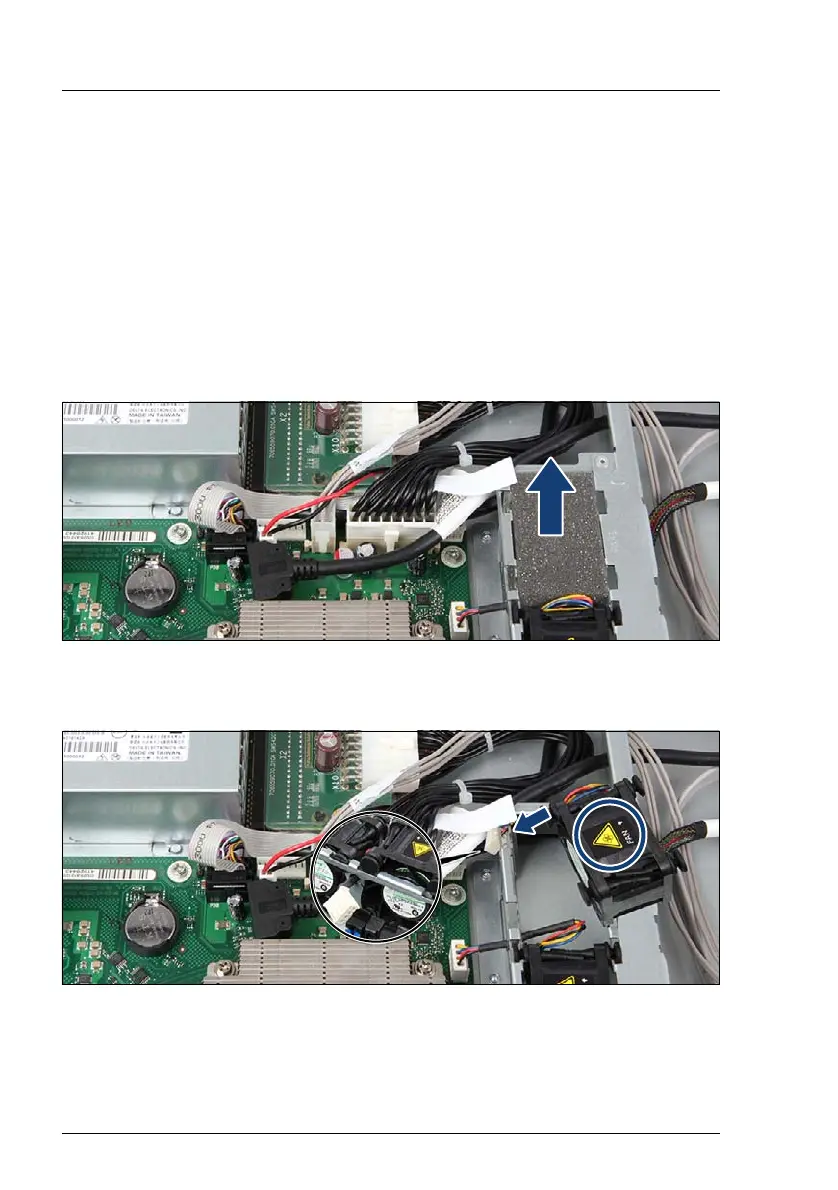

Figure 49: Removing the sponge
Ê Remove the sponge.
Figure 50: Routing fan cable
Ê Thread the fan cable through the opening of the fan cage and insert the fan
module. Notice the direction of the fan label (see circle).
