Fujitsu PRIMERGY RX1330 M3 - Page 158

158 Upgrade and Maintenance Manual RX1330 M3
Hard disk drive (HDD) / solid state drive (SSD)

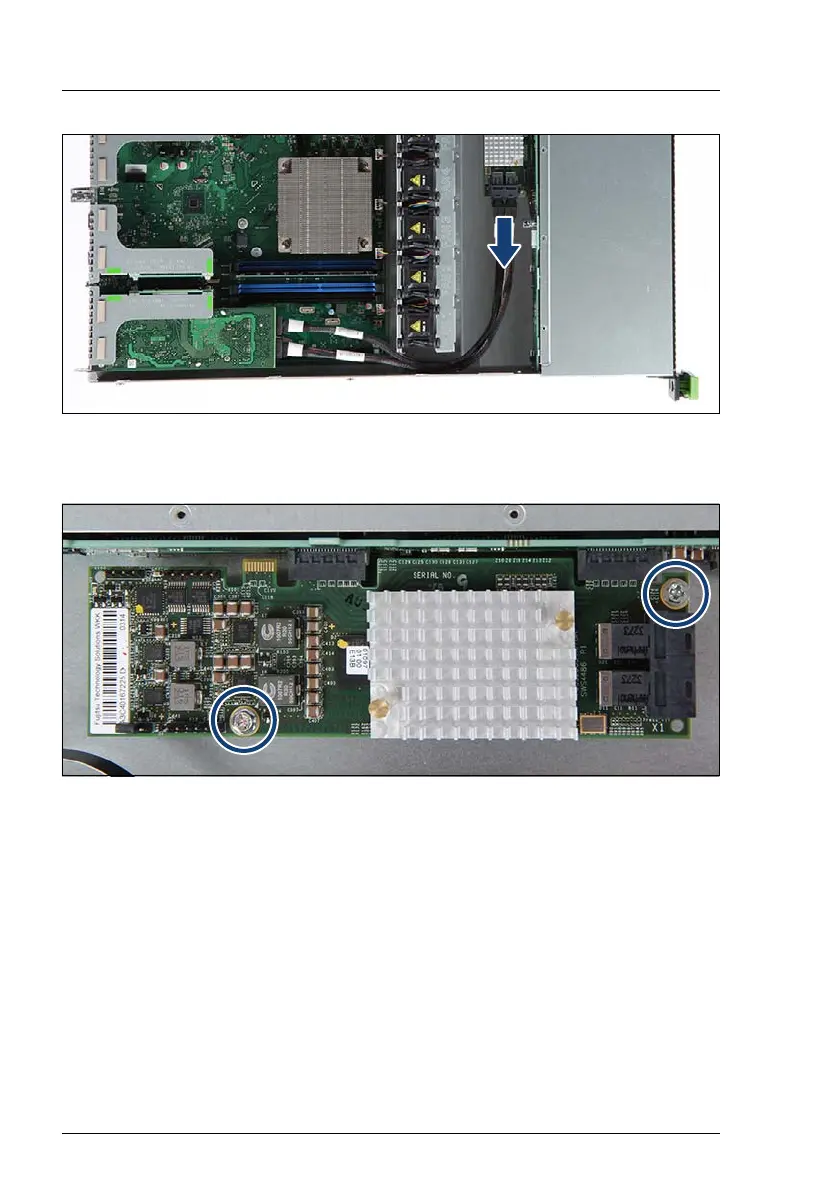

Figure 74: Disconnecting SAS cables
Ê Disconnect the two SAS cables from the SAS expander board.
Figure 75: Removing the SAS expander board (A)
Ê Remove the two screws from the SAS expander board (see circles).
