RX1330 M3 Upgrade and Maintenance Manual 161
Hard disk drive (HDD) / solid state drive (SSD)

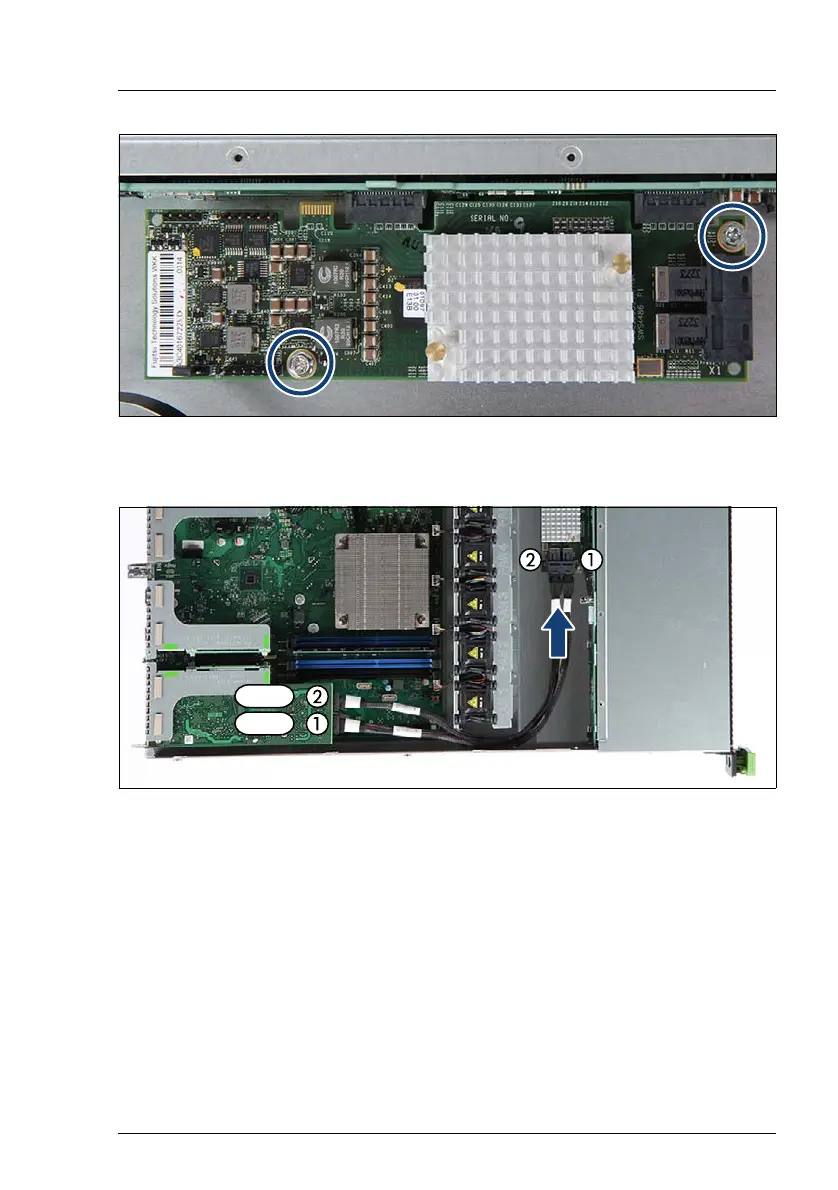

Figure 80: Installing the SAS expander board (B)
Ê Fasten the SAS expander board with two screws (see circles).
Figure 81: Connecting SAS cables
Ê Connect the two SAS cables to the SAS expander board:
– (1) from SAS controller connector MLC1 to SAS expander board
– (2) from SAS controller connector MLC2 to SAS expander board
For the cable plan see section "Cabling plans" on page 312.
