166 Upgrade and Maintenance Manual RX1330 M3
Hard disk drive (HDD) / solid state drive (SSD)

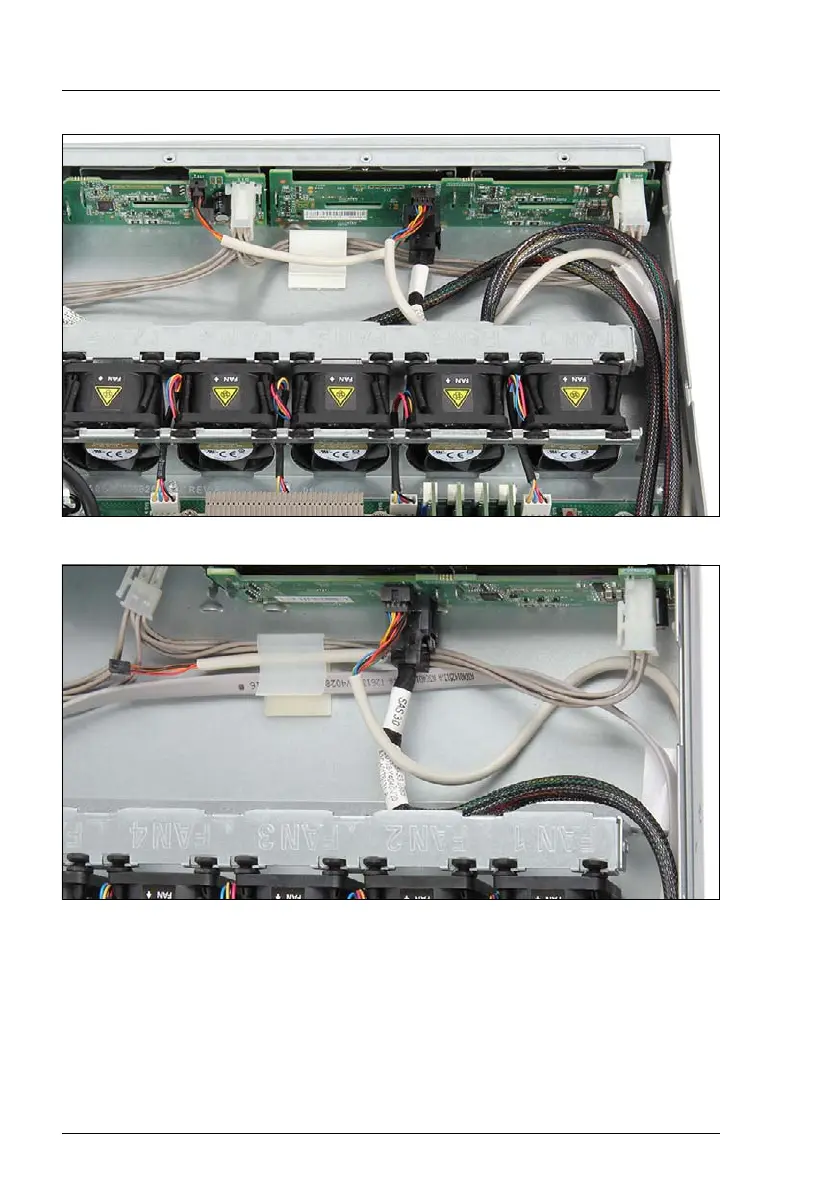

Figure 86: Connecting OOB cable (example with 2nd 2.5-inch HDD backplane)
Figure 87: Connecting OOB cable (example without 2nd 2.5-inch HDD backplane)
Ê If applicable, connect the OOB cable to HDD backplanes.
Ê If an ODD has been removed, install the ODD again as described in section
"Installing the ODD" on page 249.
