RX1330 M3 Upgrade and Maintenance Manual 193
Expansion cards and backup units

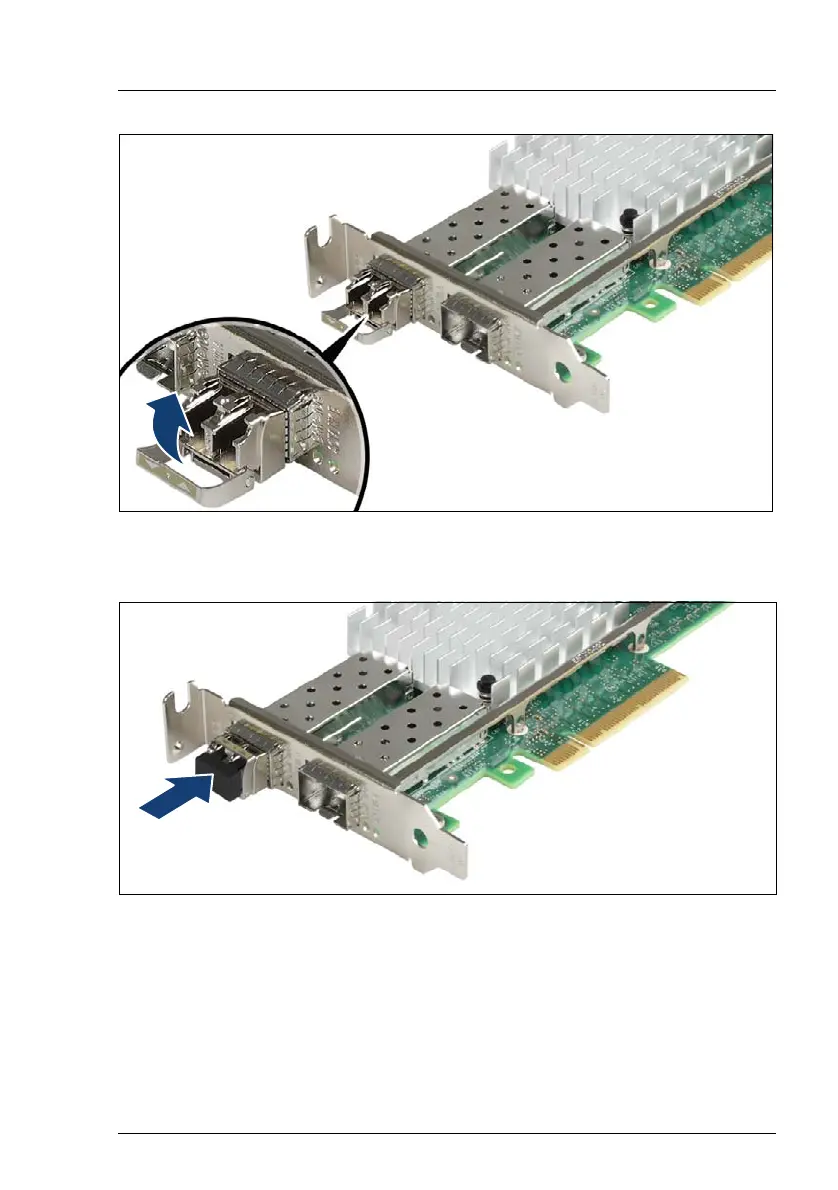

Figure 108: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 109: Installing the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
