Processor (CPU)

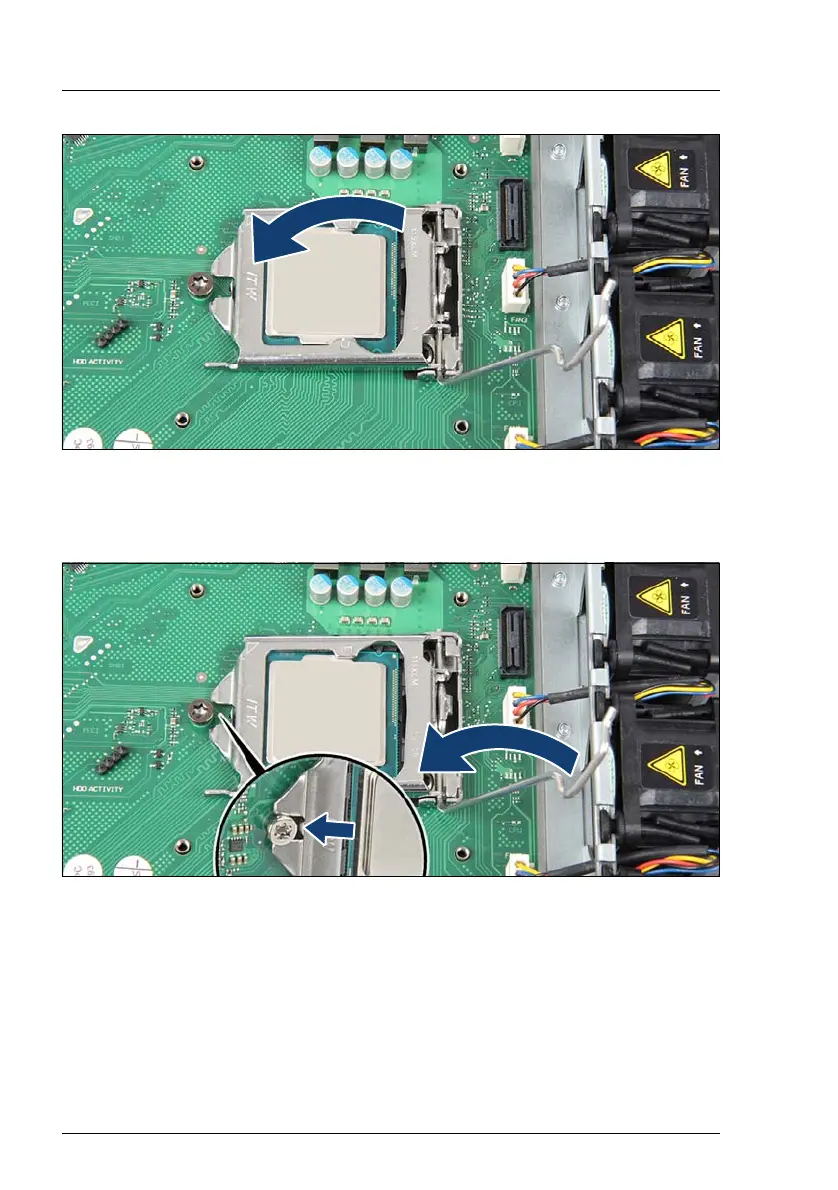

Figure 149: Closing the load plate (A)
Ê Lower the load plate over the CPU while leaving the socket lever in the open
position.
Figure 150: Closing the load plate (B)
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
