Cables

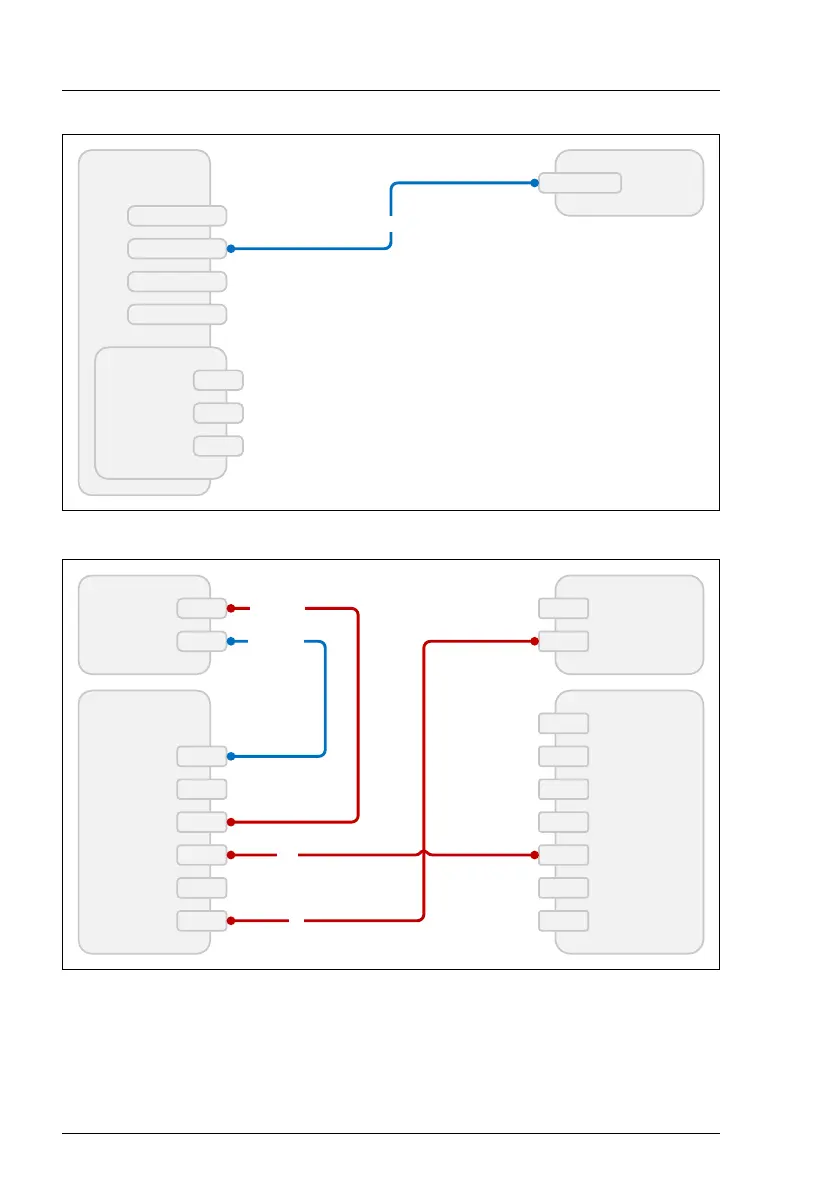

Figure 217: Basic cabling: 10x 2.5-inch HDD
Figure 218: Power cabling: 4x 3.5-inch HDD, standard PSU
System Board
D3375
USB 3.0 FRONT
FRONT VGA
Front
Panel
(on QRL )
Front Panel
FRONTPANEL2
FRONTPANEL1
SAS
Controller
MLC1
MLC2
TFM
C15
System Board
D3375
PC98
P30
PWR 1
PWR 2
PWR 3
PWR 4
SATA ODD
Data
PWR
Standard
PSU
Power
Control
4x 3.5" HDD
SAS Backplane
A3C40157818
P2
P3
P4
X10
P1
SMBUS
From PSU
From PSU
C3
C13
SGPIO
