Fujitsu PRIMERGY RX1330 M3

316 Upgrade and Maintenance Manual RX1330 M3
Cables

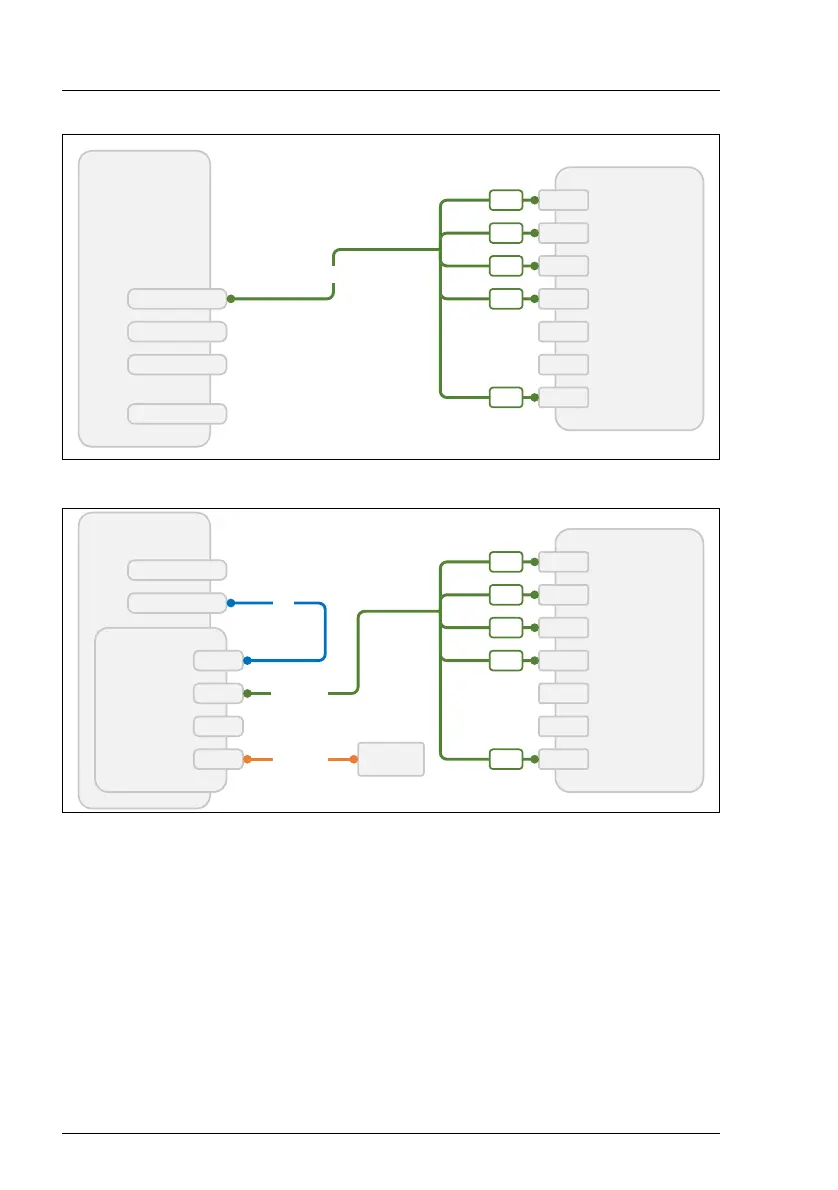

Figure 221: Drive/HDD cabling: 4x 3.5-inch HDD onboard controller
Figure 222: Drive/HDD cabling: 4x 3.5-inch HDD PRAID controller
System Board
D3375
4x 3.5" HDD
SAS Backplane
A3C40157818
SATA5 DOM
SATA6 DOM
P2
P3
P4
X10
P1
SMBUS
I2C5
SATA1-4
C8
SGPIO
P1
P2
P3
P4
P6
System Board
D3375
4x 3.5" HDD
SAS Backplane
A3C40157818
P2
P3
P4
X10
P1
SMBUS
SATA1-4
SAS
Controller
MLC1
MLC2
TFM
FBUC19 / C20
SGPIO
P1
P2
P3
P4
P6
HDD Led
LED
C21
C17 / C22
