iRMC-related status signals
LAN indicators

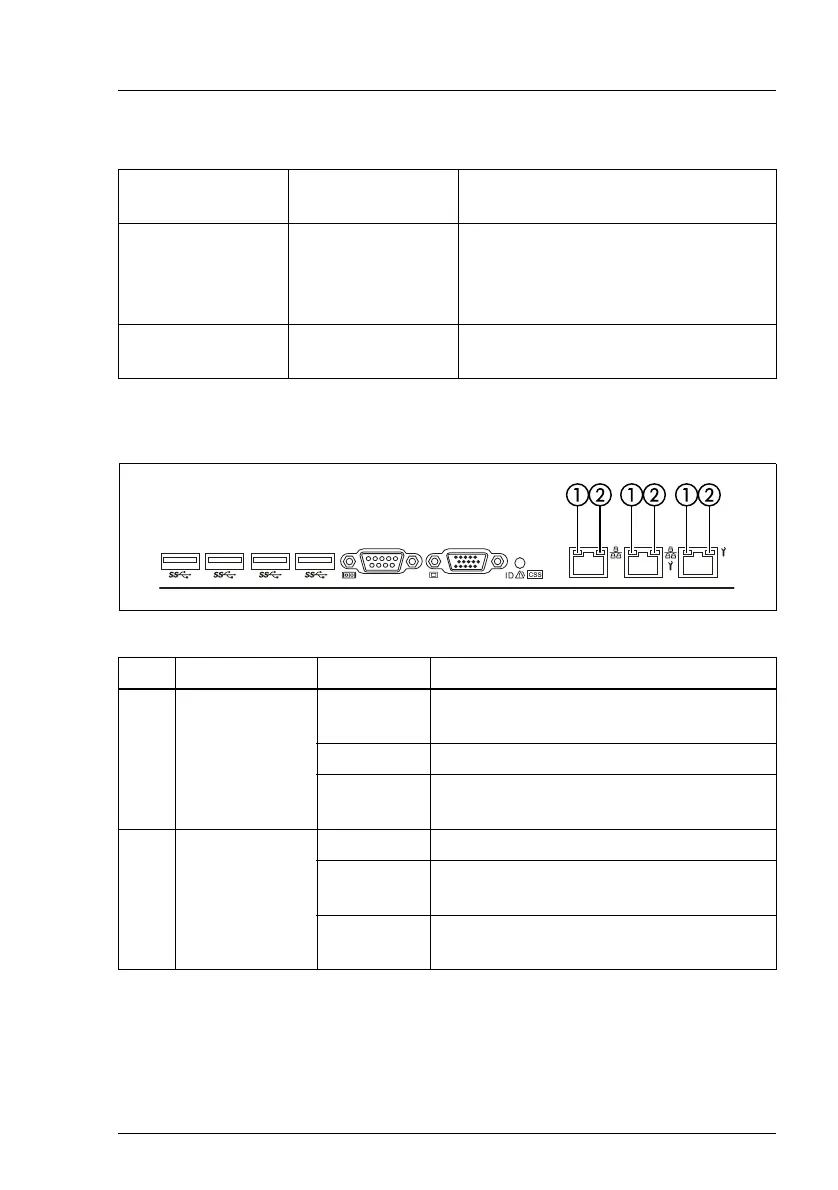

Figure 244: LAN indicators
ID indicator
Global error
indicator
Description
blue flashing off
A remote connection has been
established. Local VGA output has
been disabled during the remote
session.
blue flashing orange flashing
An emergency flash of the iRMC
firmware is in progress.
Pos. Indicator Status Description
1
LAN
link/transfer
indicator
green on
A LAN connection has been
established.
off LAN is not connected.
green
flashing
LAN data transfer is in progress.
2
LAN speed
indicator
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on
Data traffic at a transfer rate of
100 Mbit/s.
off
Data traffic at a transfer rate of
10 Mbit/s.
