RX1330 M3 Upgrade and Maintenance Manual 67
Basic hardware procedures

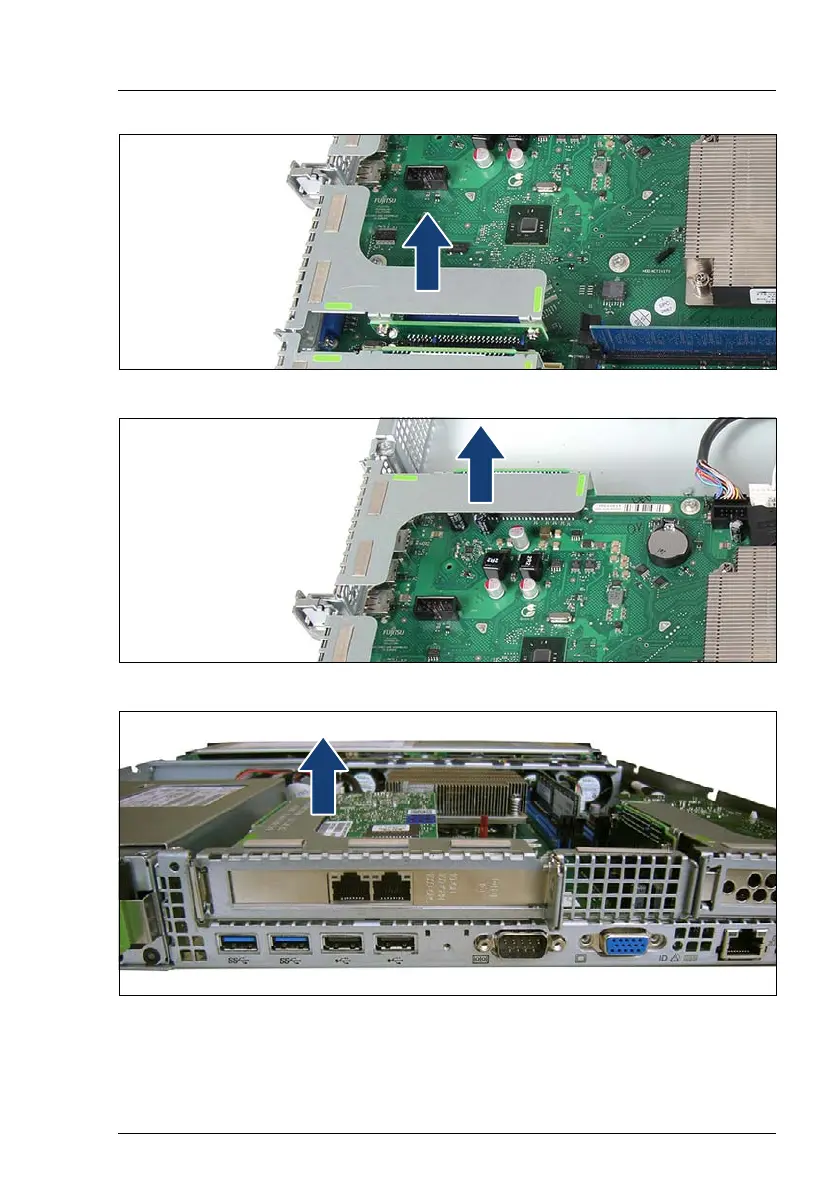

Figure 13: Removing the riser module 2
Figure 14: Removing the riser module 3
Figure 15: Removing the full height riser module
Ê If necessary, disconnect cables from the other components.
Ê Carefully pull out the riser module upward.
