104 Upgrade and Maintenance Manual
RX200 S8
Power supply

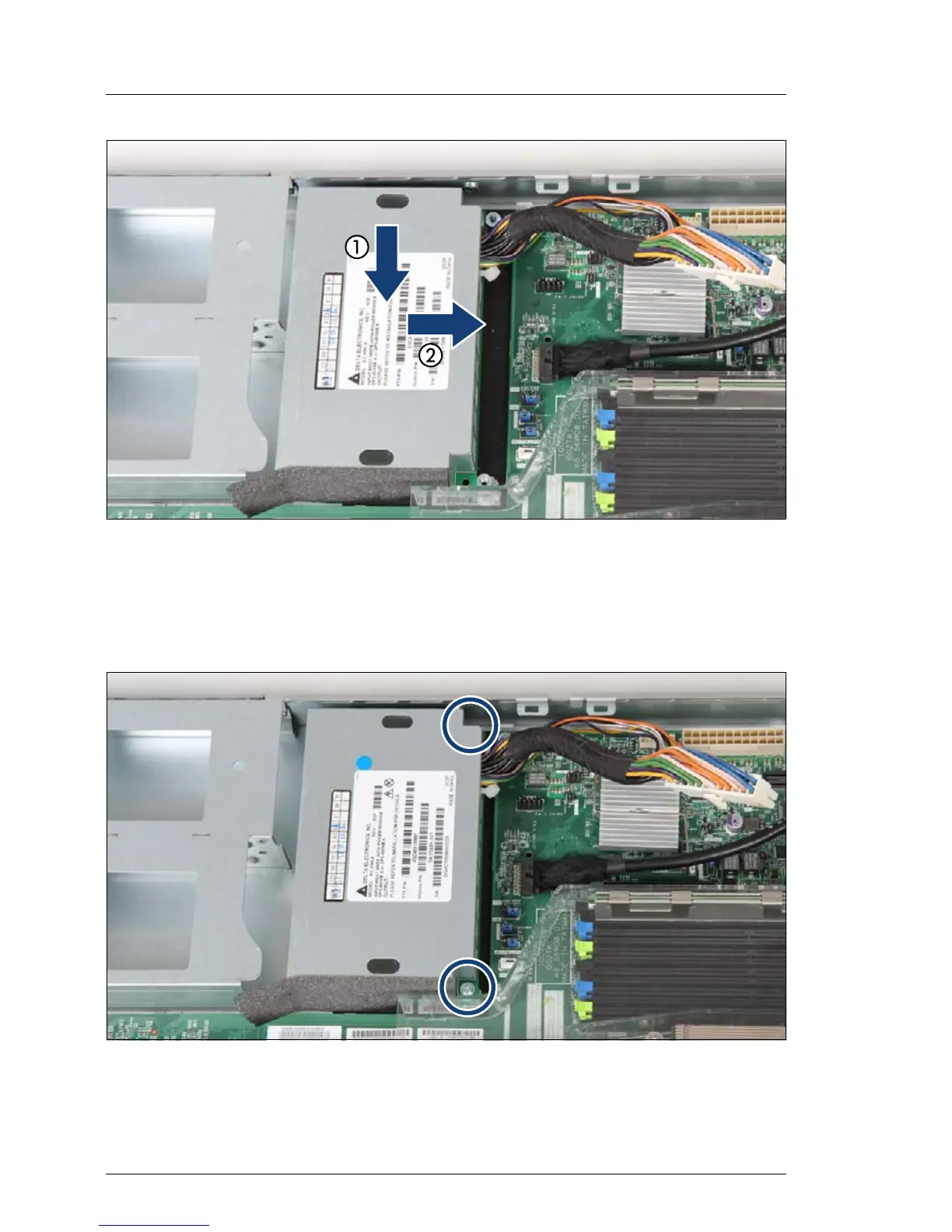

Figure 36: Installing the power distribution board
Ê Position the power distribution board on the two bolts (see circles in figure
35) (1).
Ê Push the power distribution board in the direction of the arrow (2).
Figure 37: Fastening the power distribution board
Ê Fasten the power distribution board with the two screws (see circles).
