166 Upgrade and Maintenance Manual
RX200 S8
Expansion cards and backup units
9.4.6 Replacing a riser card
9.4.6.1 Preliminary steps
Ê "Locating the defective server" on page 43
Ê "Shutting down the server" on page 46
Ê "Disconnecting the server from the mains" on page 47
Ê "Getting access to the component" on page 47
Ê "Locating the defective component" on page 45
Ê Remove the corresponding riser module as described in section "Handling
riser modules" on page 58.
9.4.6.2 Removing the defective riser card
Ê Remove the expansion card as described in section "Removing the
expansion card - slot 1-3" on page 159 or "Removing the expansion card -
slot 4" on page 162.

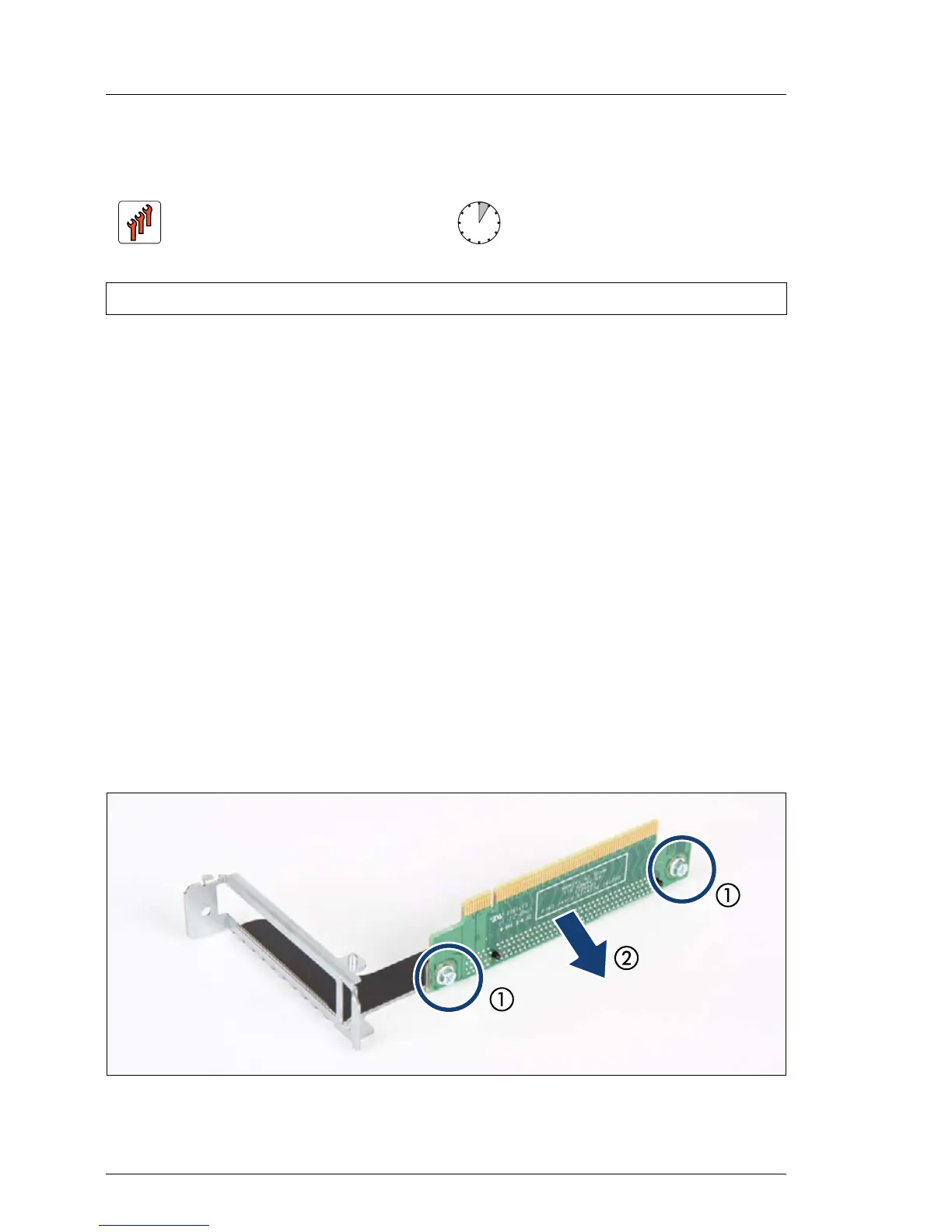

Figure 99: Removing the riser card - slot 1
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
