RX200 S8
Upgrade and Maintenance Manual
103
Power supply

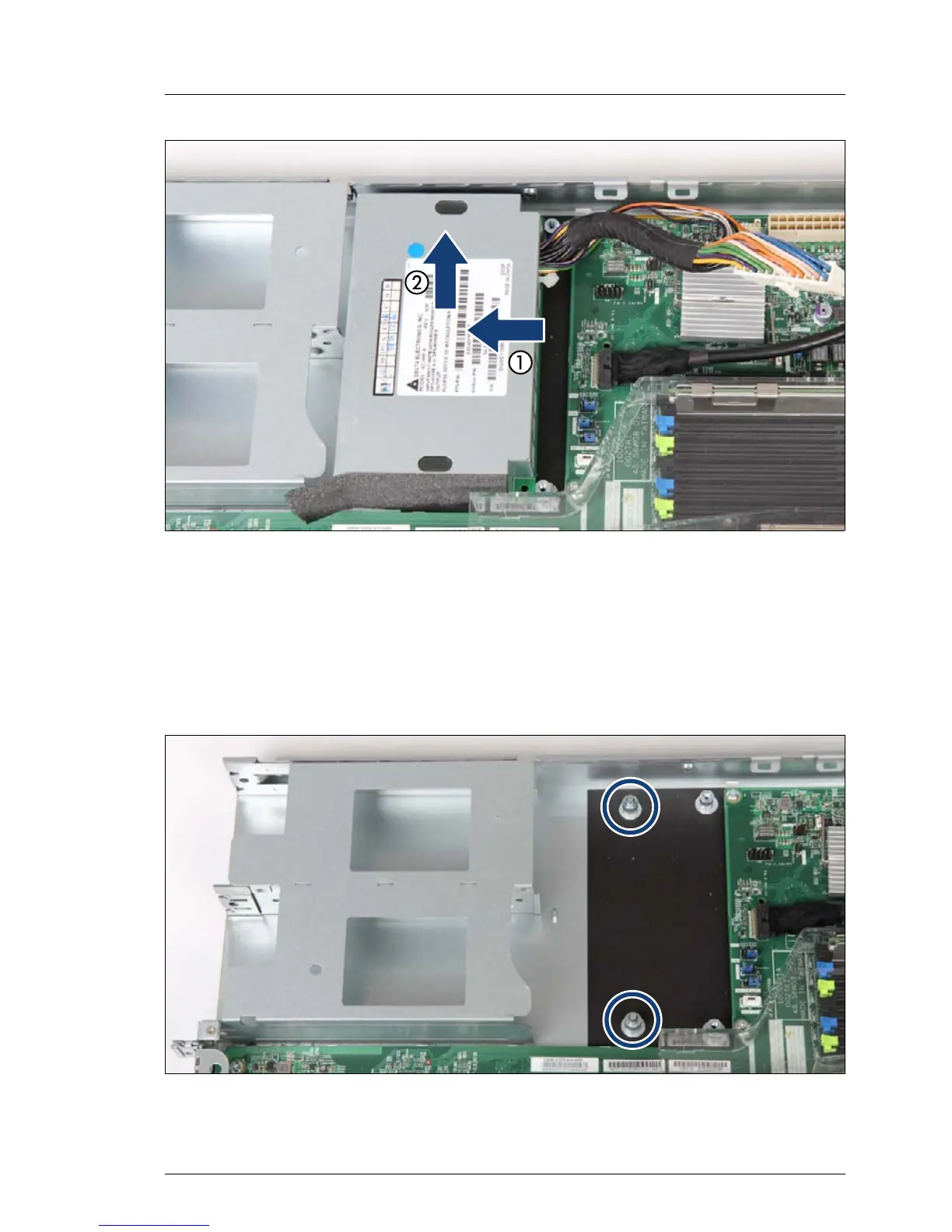

Figure 34: Removing the power distribution board
Ê
Pull the power di
stribution board in direction of the arrow (1).
Ê
Remove the power distri
bution board upward (2).
6.5.3
Inst
a
lling the ne
w power distribution
board
Figure 35: Position
bolt
s
102
104
