RX200 S8
Upgrade and Maintenance Manual 171
Expansion cards and backup units

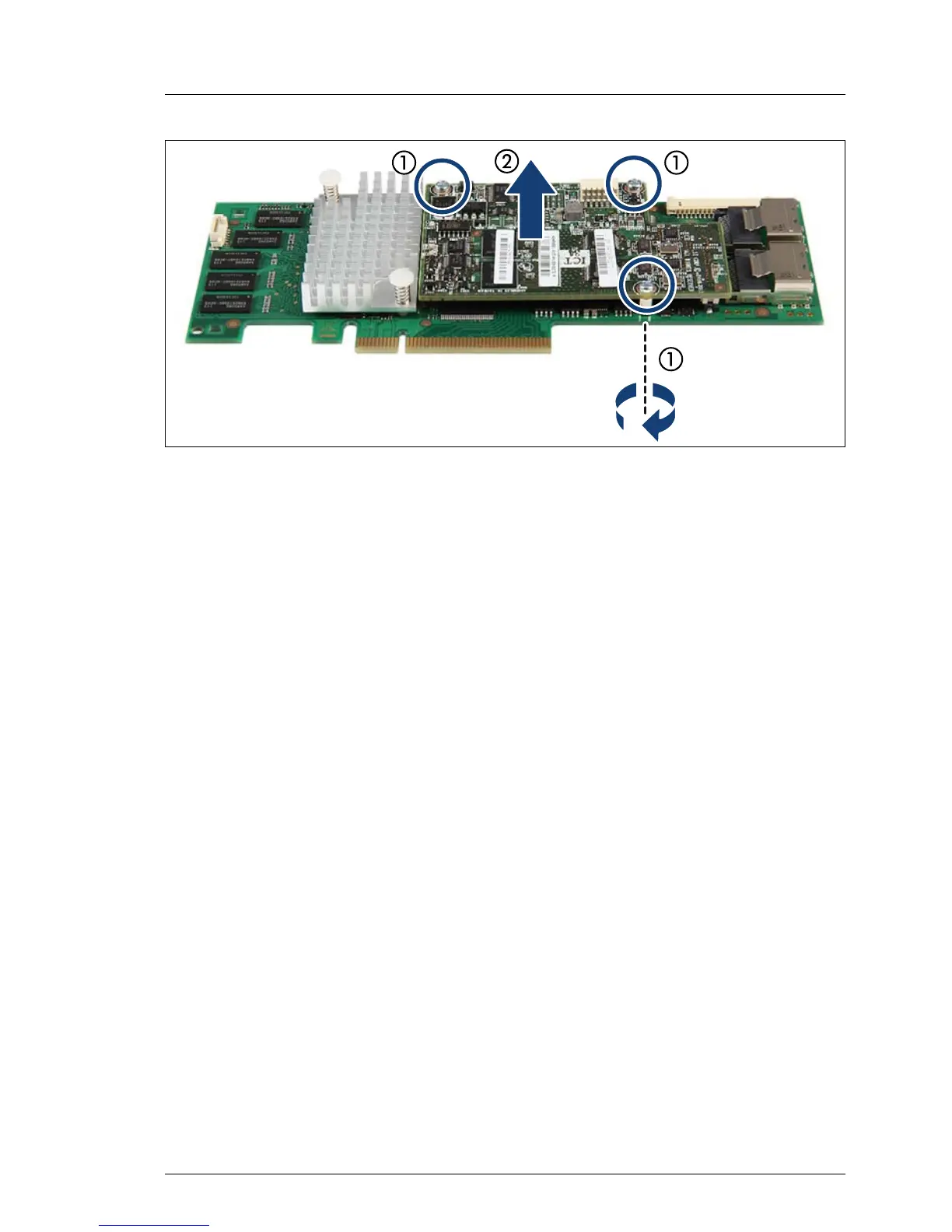

Figure 106: Removing the TFM
Ê Remove the three screws (1).
Ê Remove the TFM (2).
9.4.7.3 Installing the new TFM
Ê Install the new TFM as described in section "Installing TFM to the RAID
controller (if applicable)" on page 178.
Ê Connect the FBU cable to the TFM.
V CAUTION!
●
Make sure that the connector side with the three dots is on the top.
Otherwise you risk short-circuits.
●
Do not connect the cable using excessive force, the connector is
weak.
Ê Install the expansion card as described in section "Installing an expansion
card - slot 4" on page 157.
9.4.7.4 Concluding steps
Ê "Installing the riser module 3" on page 61
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 57
Ê "Switching on the server" on page 58
