9.5.3.3 Installing the FBU in the holder

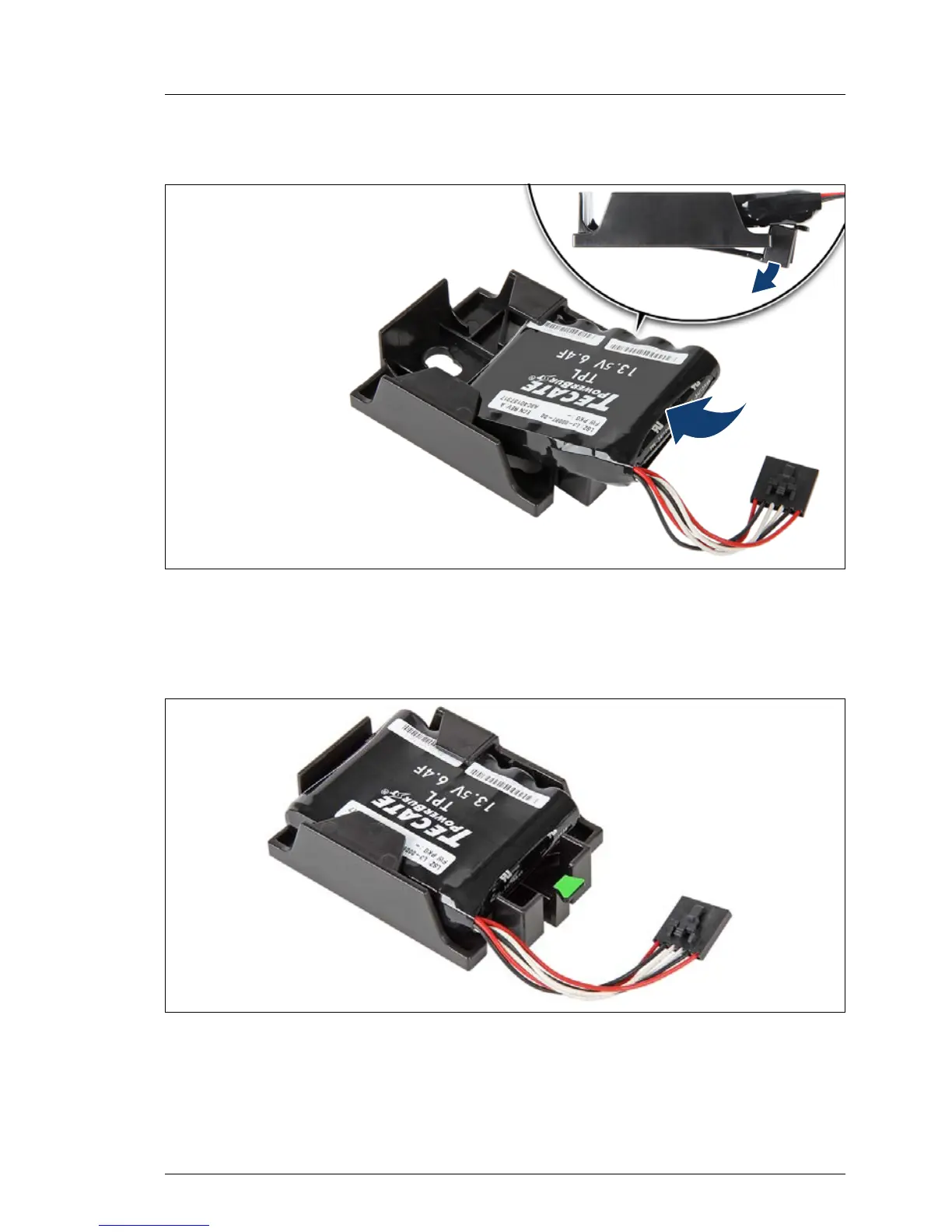

Figure 116: Installing the FBU in the holder (A)
Ê At a slight angle, fit the FBU under the right retaining bracket on the holder.
Ê Push down the FBU until it locks in place.
Figure 117: Installing the FBU in the holder (B)
Ê Ensure that the FBU is properly seated in the holder as shown.
