224 Upgrade and Maintenance Manual RX200 S8
Processors
11.3.3 Removing the defective processor

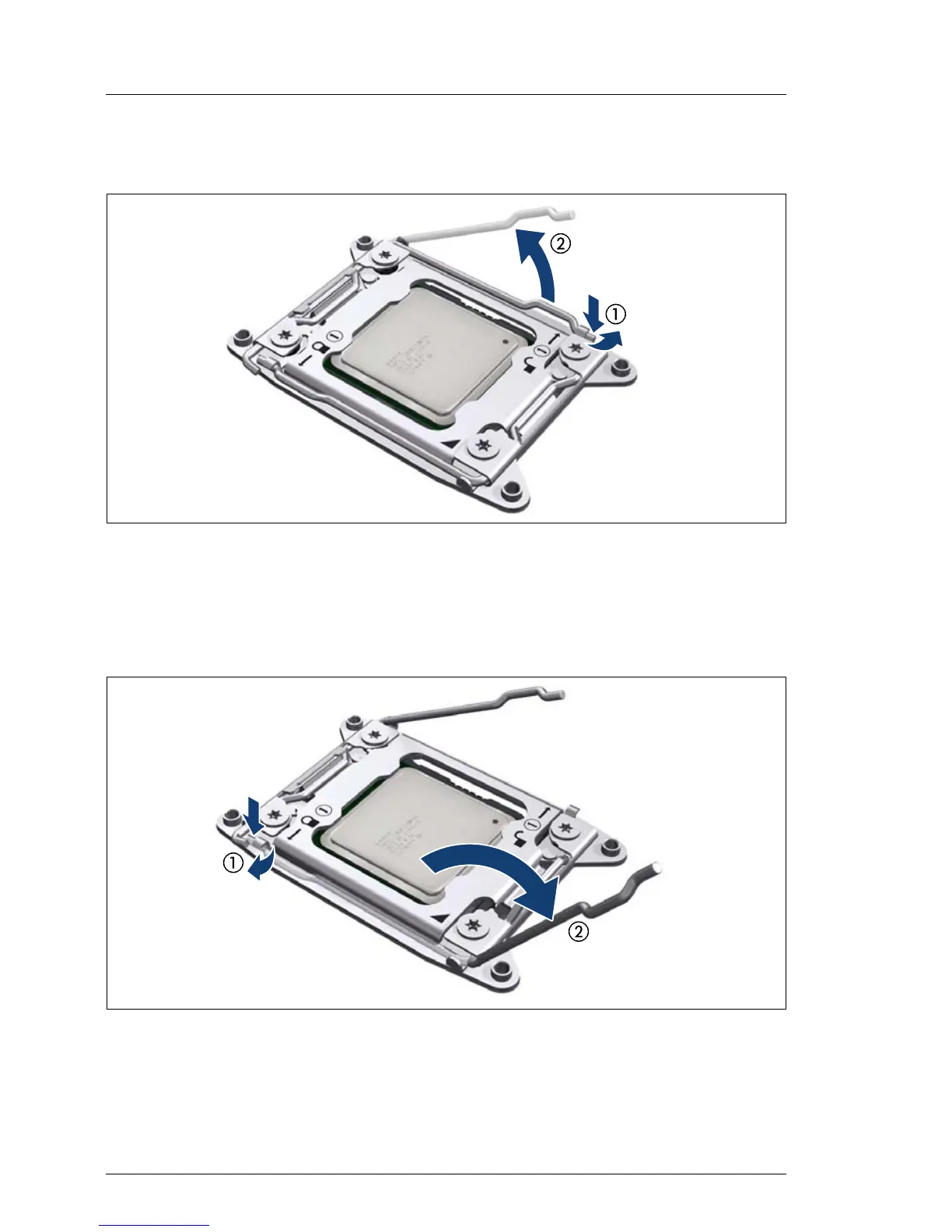

Figure 152: Opening socket release lever 1
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever will slightly lift up (2).
Figure 153: Opening socket release lever 2
Ê Unlatch the socket release lever marked Close 1st by pushing it down and
away from the socket (1).
Ê Fully fold back the second socket release lever (2).
