Fujitsu PRIMERGY RX200 S8 - Server Rear

322 Upgrade and Maintenance Manual RX200 S8
Appendix
17.1.2 Server rear

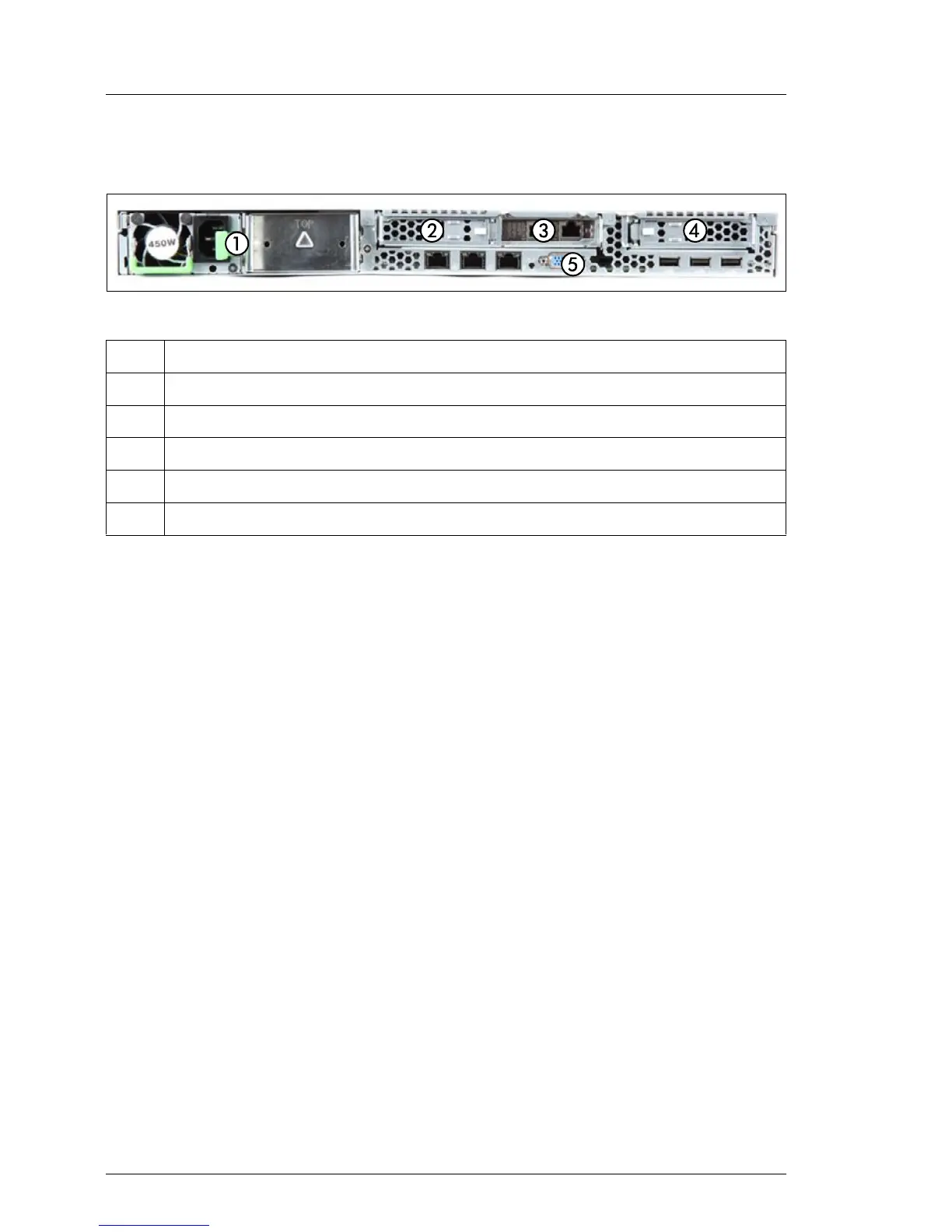

Figure 254: Rear side
I PCIe slot 4 is located inside the housing.
Pos. Component
1 Up to 2 power supply units / dummy cover
2 PCIe slot 3
3 PCIe slot 2 (option)
4 PCIe slot 1
5 Connectors and indicators
